2025 Economical 30W LED Area lights Fixtures. These ultra-economy LED garden pole lamps can be installed in outdoor areas such as parking lots, corporate parks, and retail settings., SPD 10KV, 5 years warranty. LED area light output equivalent to 100W metal halide with 30W or replacing up to 250W with 80W.
Main Features
High luminaire efficiency up to 150lm/w.
Wide power range: 30W~150W.
IP66 and IK08 protection rate. 5 years warranty
Class Ⅱ driver that covered with plastic contributes to double insulated. Electric leakage and any dangerous accident are impossible to happen.
Streamline exterior design, beautiful appearance.
Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
Quality surge protector ensures reliable and steady operating.
Specifications
| Product Type | LED Area Light |
| Model No. | GL-PT-30WX |
| Power | 30W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 4,500LM(150lm/w) |
| Light Source | Lumileds SMD3030 |
| LED Quantigy | 144pcs total |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 120°//T2/T3/T4/T5(150*150º) |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | Meanwell / Sosen |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 466*H565mm |
| Weight | 7.2KG |
| CTN Size | 570×490×135mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

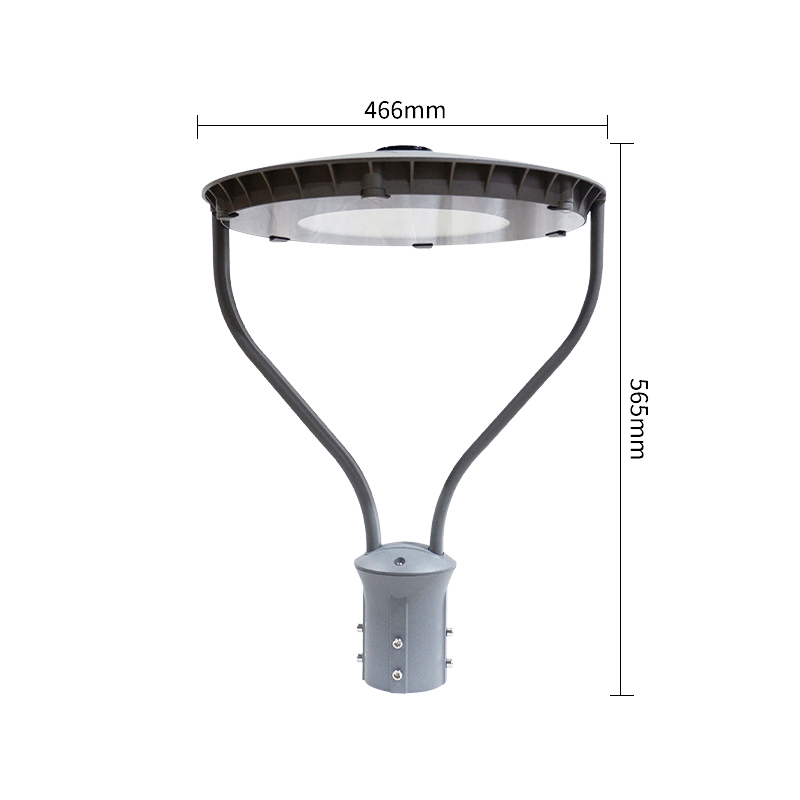

Size
NEMA Socket 3PIN 5PIN 7PIN
The LED Post Top Pole Lights LED Garden Circular Area Light operating depends on the ambient luminance. When it is dark or dawn, it will lighten with a suitable luminance automatically.
By intelligent control, we can set and switch to lower costs which saves 20-50% energy and extends 2 or 4 times lifespan.

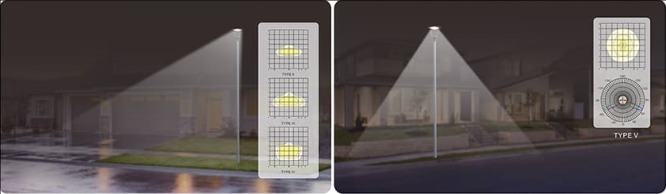

Beam Angle
Installation
30W LED area lights is best with 10' poles and 80W led post top light is best suited for 15' poles.
Applications
The 30w led area lights are used for outdoor applications such as city expressway, trunk road, factories, schools, garden, parking lots light, public parks etc.
If you would like to purchase our LED Garden Circular Area Light lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
