60W 50W 40W 30W LED Garden Light 20W LED Urban Light is also led urban light with a variety of lens options designed to replace MH or HPS or HID pendant LED decorative pole mounted street light fixtures.
Main Features
High luminaire efficiency up to 150lm/w.
Wide power range: 20W~60W.
LED module is used inside, which is easy to install and replace.
Full die-casting aluminum housing(ADC12).
Provides different light distribution lens Type II ,Type III for the street light to achieve best lighting effect in different applications.
Quality surge protector ensures reliable and steady operating.
Specifications
| Product Type | LED Urban Light | ||||
| Model No. | GL-PT-20WY | GL-PT-30WY | GL-PT-40WY | GL-PT-55WY | GL-PT-60WY |
| Power | 20W | 30W | 40W | 55W | 60W |
| Lumens | 3,000LM(150lm/w) | 4,500LM(150lm/w) | 8,250LM(150lm/w) | 4,500LM(150lm/w) | 9,000LM(150lm/w) |
| Input Voltage | AC 100-277V 50/60Hz | ||||
| Light Source | SMD 3030 / SMD 5050 | ||||
| CRI | >70RA (Ra80 optional) | ||||
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K | ||||
| Beam Angle | 30°/60°/90°/120°//Type II /Type III | ||||
| DIMMABLE | Non-dimmable / Dimmable | ||||
| Power Factor | >0.95 | ||||
| Protection level | IP66 IK08 | ||||
| Product Dimension | Φ560*H450mm | ||||
| Weight | 7KG | ||||
| CTN Size | 480×480×480mm (1PC/CTN) | ||||
| Life Span | >50,000 hours | ||||
| Warranty | 5 Years Warranty | ||||
| Certified | CE ROHS | ||||

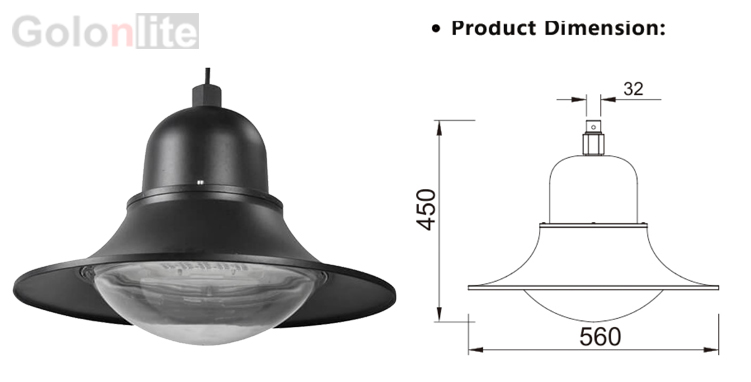

Dimension of 30W 40W 55W 60W led Urban light

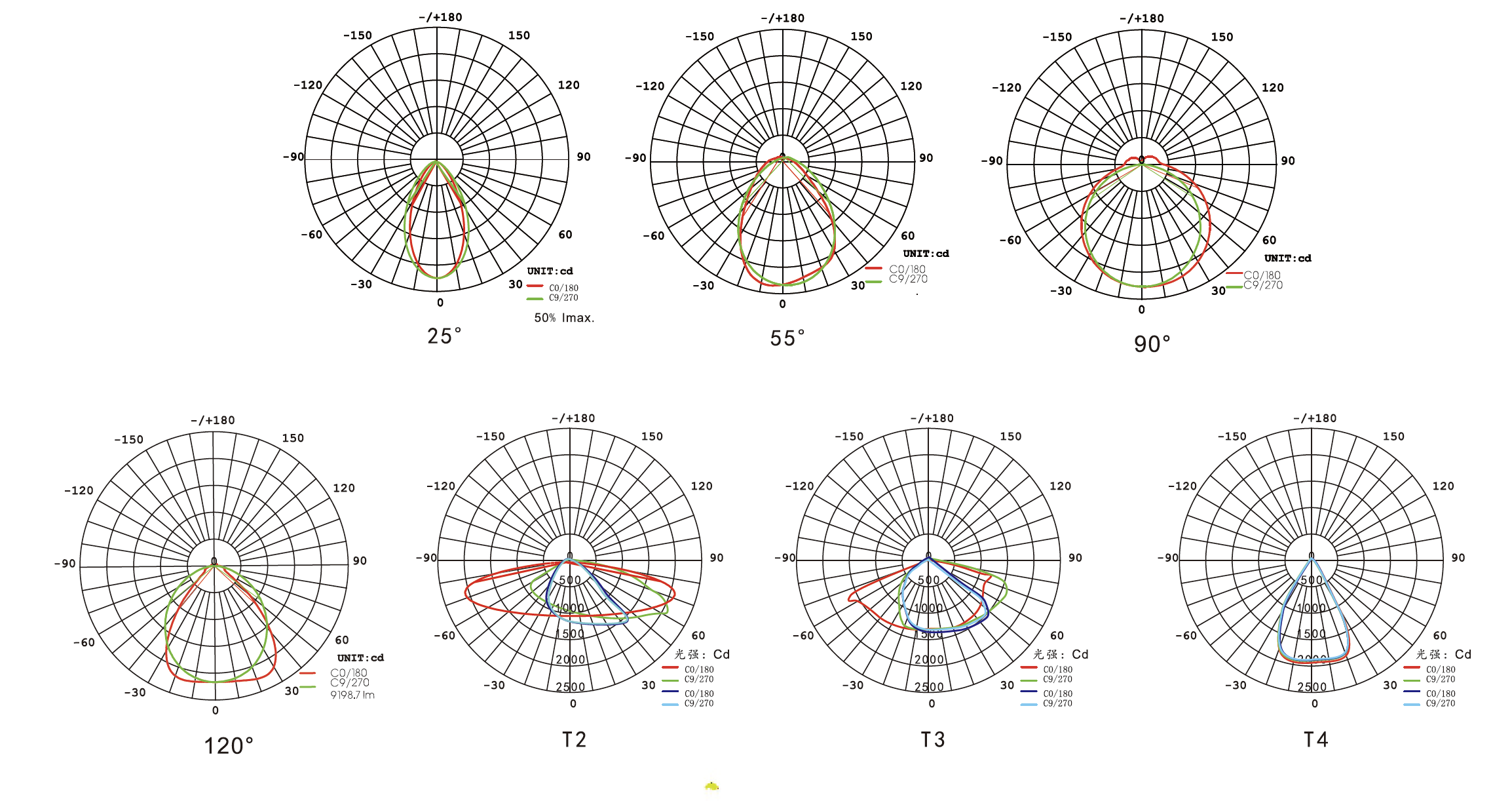

Light Distribution

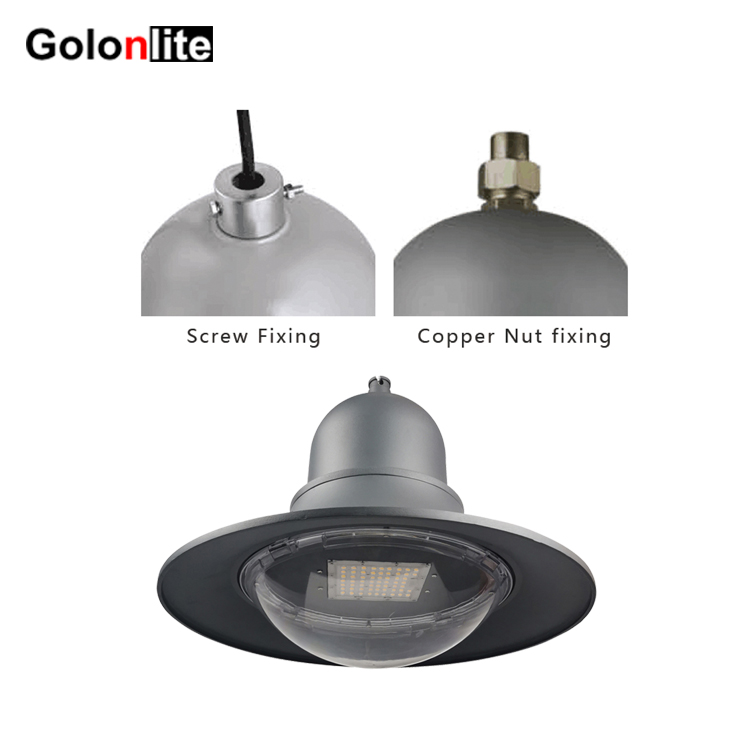

Installation

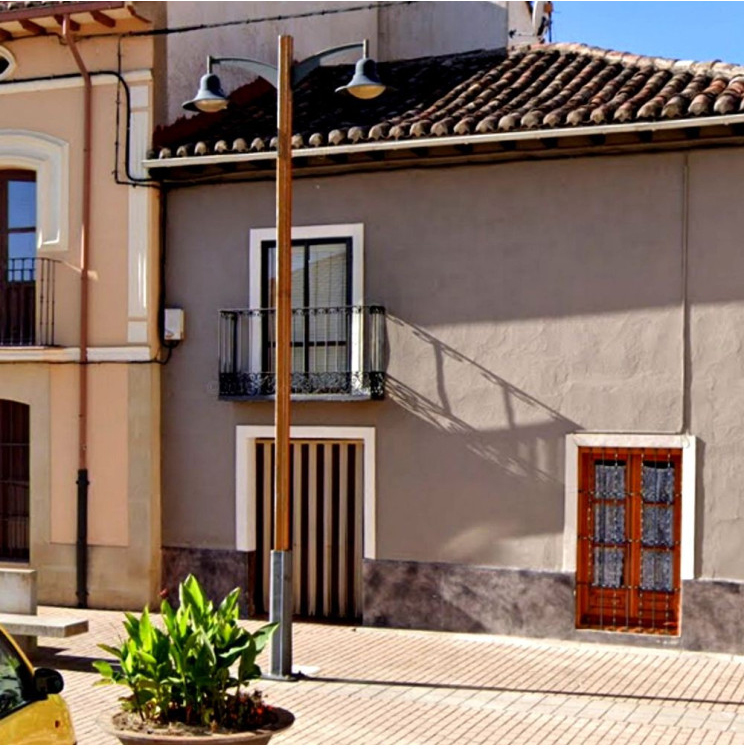

Applications

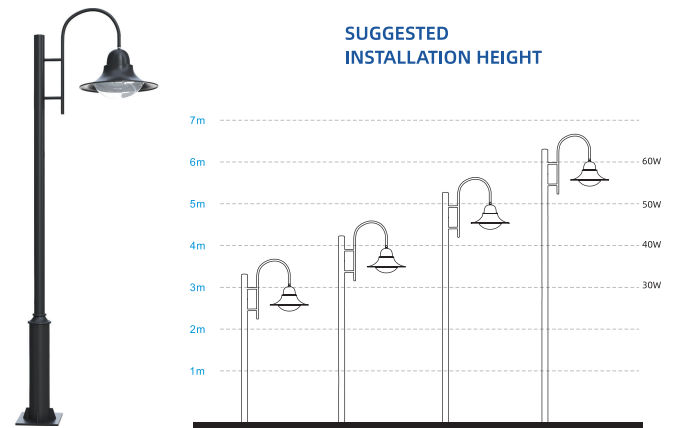

60W 55W 50W 40W 30W led garden light is also led urban light with a variety of lens options designed to replace MH or HPS or HID pendant LED decorative pole mounted street light fixtures. Applications include urban roads, parking lots, sidewalks and pedestrian public spaces. The installation height is 3 to 8 meters and can be used according to the light level and uniformity requirements.
If you would like to purchase our 60W 55W 40W 30W 20W LED urban lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
