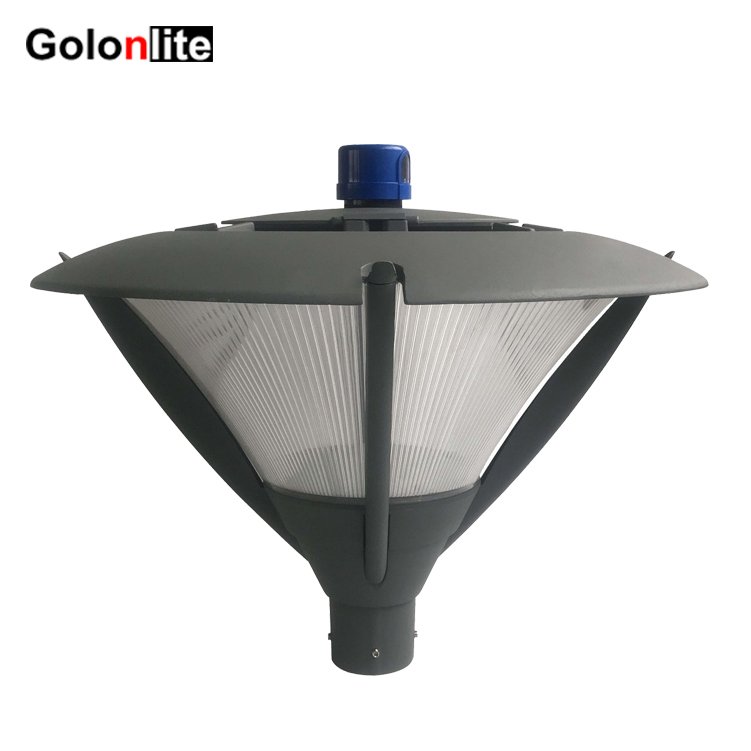

80W Urban Lamp Post Park Lantern 60W LED Post Top Garden Landscape Light 30W is used for roadway, parking structure, facility and area lighting applications.
Main Features
With conical bowl and prismatic crown for reduced glare and distinctive appearance.
Connectivity with Zhaga socket.
Wide power range: 30W~80W.
LED module is used inside, which is easy to install and replace.
Full die-casting aluminum housing(ADC12).
Provides different light distribution lens Type II ,Type III for the street light to achieve best lighting effect in different applications.
Quality surge protector ensures reliable and steady operating.
Specifications
| Product Type | LED Outdoor Urban Lamp Post | ||||
| Model No. | GL-PT-30WV | GL-PT-40WV | GL-PT-50WV | GL-PT-60WV | GL-PT-80WV |
| Power | 30W | 40W | 50W | 60W | 80W |
| Lumens | 4,500LM(150lm/w) | 6,000LM(150lm/w) | 7,500LM(150lm/w) | 9,000LM(150lm/w) | 12,000LM(150lm/w) |
| Input Voltage | AC 100-277V 50/60Hz | ||||
| Light Source | SMD 3030 / SMD 5050 | ||||
| CRI | >70RA (Ra80 optional) | ||||
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K | ||||
| Beam Angle | 30°/60°/90°/120°//Type II /Type III | ||||
| DIMMABLE | Non-dimmable / Dimmable | ||||
| Power Factor | >0.95 | ||||
| Protection level | IP66 IK08 | ||||
| Product Dimension | Φ700*H460mm | ||||
| Weight | 12KG | ||||
| CTN Size | 720×720×480mm (1PC/CTN) | ||||
| Life Span | >50,000 hours | ||||
| Warranty | 5 Years Warranty | ||||
| Certified | CE ROHS | ||||

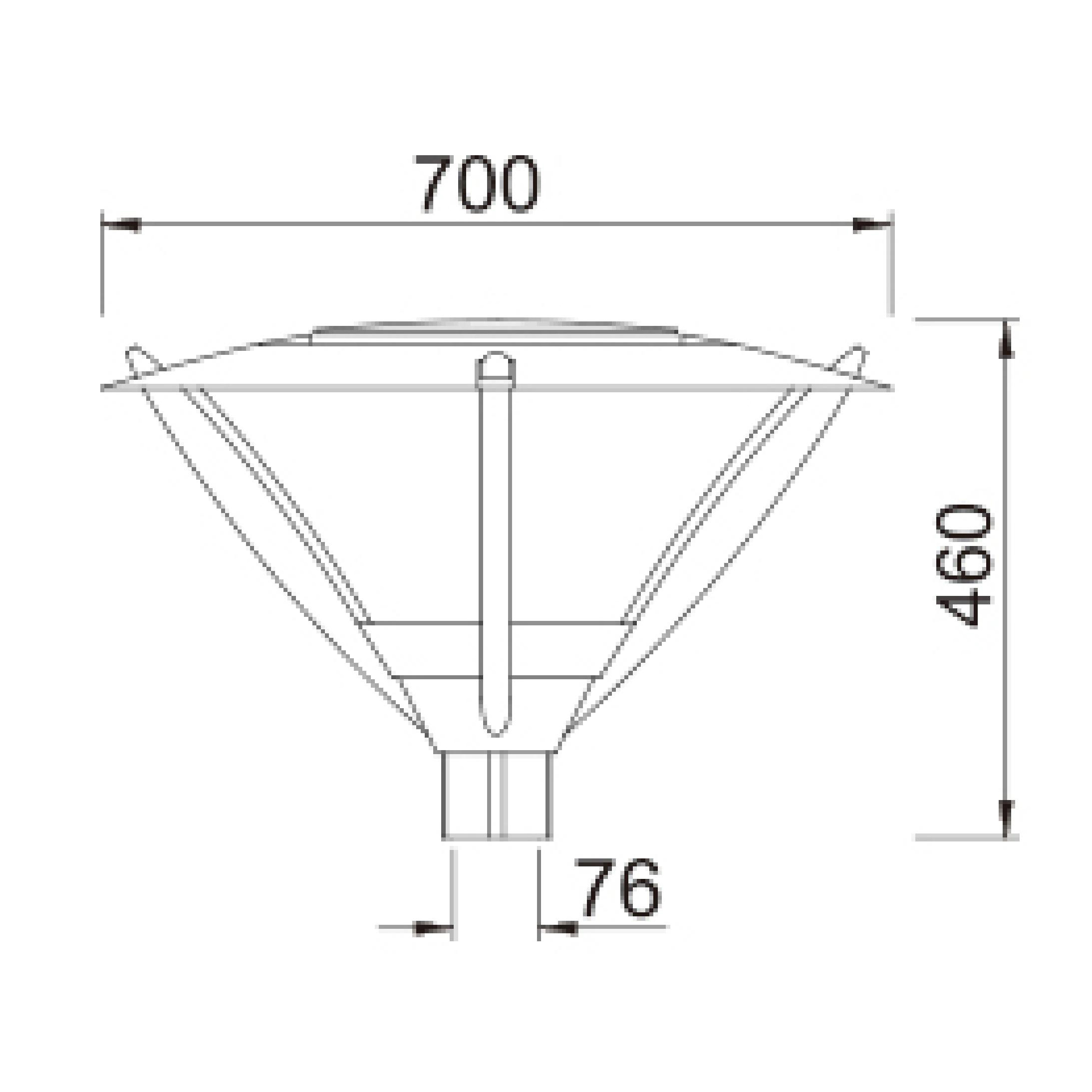

Dimension of 30W 40W 50W 60W 80W outdoor lamp post
Light Distribution

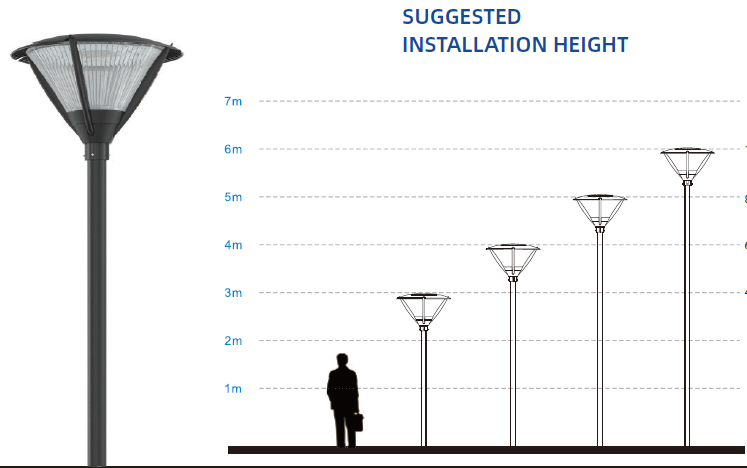

Installation of LED Post Top Garden Landscape Light
60W LED Post Top Light - Outdoor pathway Landscape Pole Lighting Fixture suitable for mounting on top Ø76mm or Ø60mm, spigot internal length: 100mm. Recommended height: 3-6m.

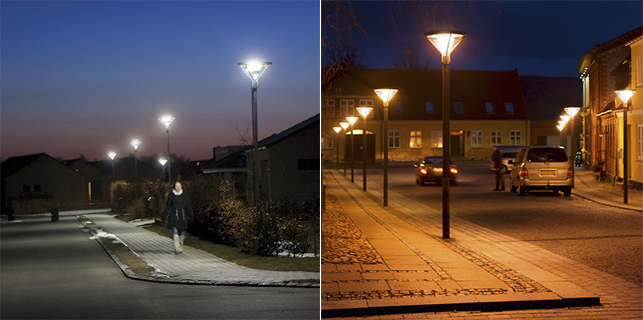

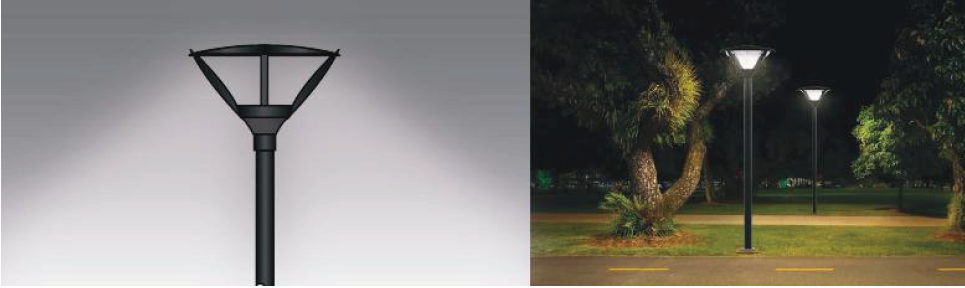

Applications
80W 60W 50W 40W 30W LED Post Top Garden Landscape Lights are also led urban light with a variety of lens options designed to replace MH or HPS or HID LED Post Top Light fixtures. Applications include urban roads, parking lots, sidewalks and pedestrian public spaces. The installation height is 3 to 6 meters and can be used according to the light level and uniformity requirements.
Our urban lamp post configuration options ARE AVAILABLE (colour temperature, controls, colour...), you can contact us by phone or by mail for more detailed information and the latest quotation.
