Main Features
5 years warranty
Beam angle TypeⅢ/TypeⅣ and TypeⅤoptional
Original Philips SMD 3030 which up to 130Lm/W
Die-cast Aluminum Heat Sink protects the state of the art MEANWELLL Driver. Better Heat dissipation ensures longer LED life and safety.
IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Tiny package and lighter,lower freight cost,more competitive in the market
Avaialble for supermarkets, convenience stores, gas stations, parking lots, warehouses, shops, high bays, low bays, street lights, hotels, motels, etc.
Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 90%.

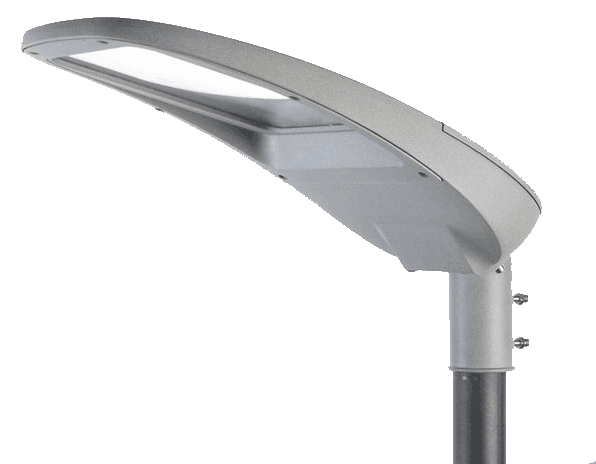

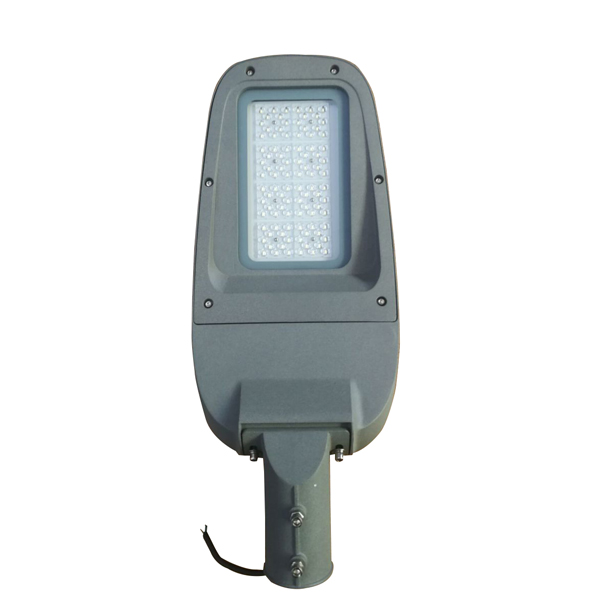

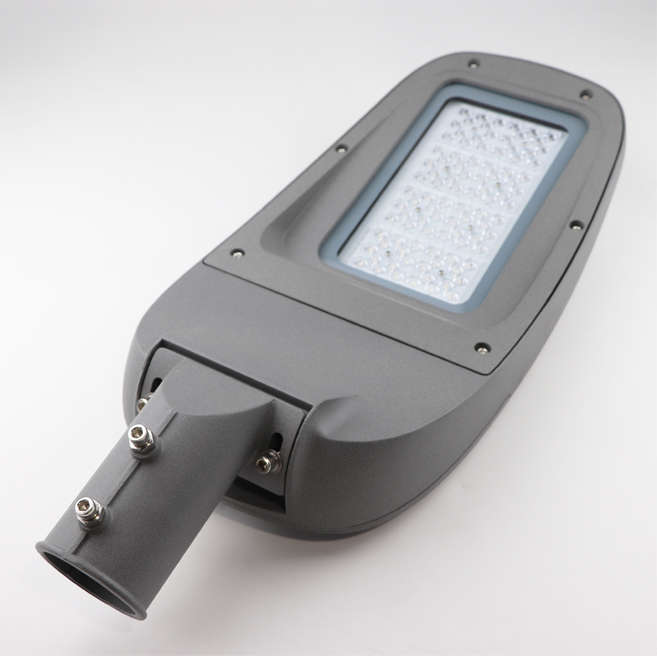

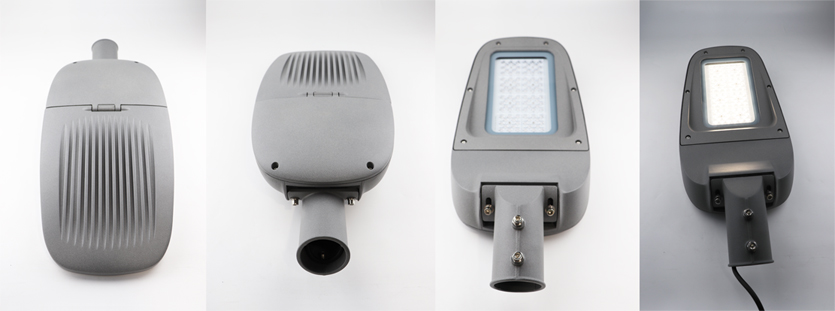

Specifications - 80W LED Street Roadway Lights
| Item NO. | GL-SLB-02 |
| Input Voltage | 100-300VAC , 347-480VAC 50/60Hz |
| Wattage | 200W |
| Luminous Flux | 26000 Lumen |
| Luminous efficiency | 130LM/W |
| Lihgt Source/ LED QTY | Philips SMD 3030/ 288pcs |
| Driver Power | UL TUV CE RoHS approved driver |
| Dimension | Diameter*Height: 340mm*169mm |
| Weight(N.W / G.W) | 4.5KG / 5.1KG |
| CTN Size | 40*40*22cm 1PC/CTN |
| Equivalent | 500W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| Beam Angle | TypeⅢ/TypeⅣ/TypeⅤ |
| Power Factor | >0.95 |
| Dimmable Sensor Options | Non-dimmable / Dimmable/Microwave Motion+daylight sensor |
| Cap Type | Base Options:US,Europe,UK,Australia plug |
| optical lens | Acrylic lens (Optical Grade)/ Glass |
| Cover options | Acrylic reflector, milky cover and clear cover options |
| Unified Glare Rating | 60° : UGR < 19 90° / 120° : UGR < 25 |
| IP Rating | IP65 |
| CRI | >80 |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 year Warranty |
| Rated Lifespan | 50,000+ hours |
| Certified | CE RoHS certified |

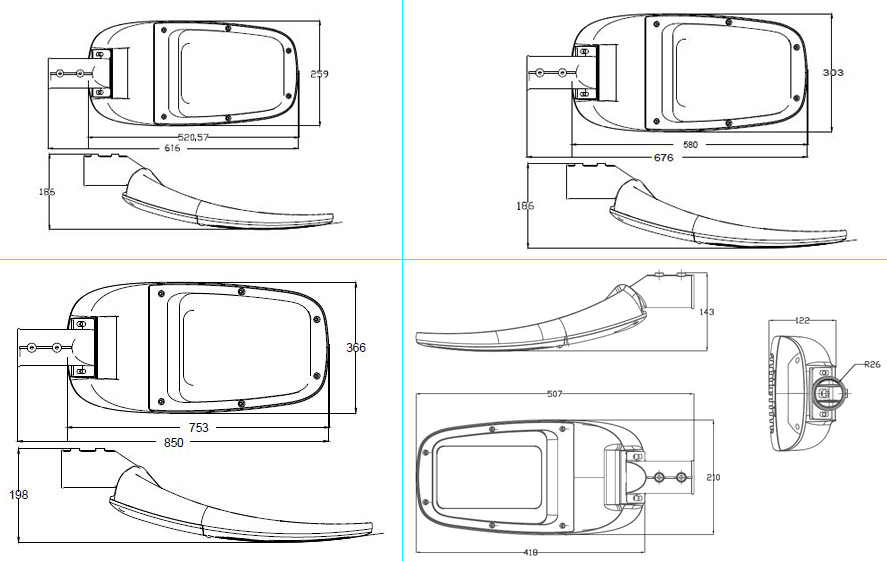

Dimensions LED Street Light

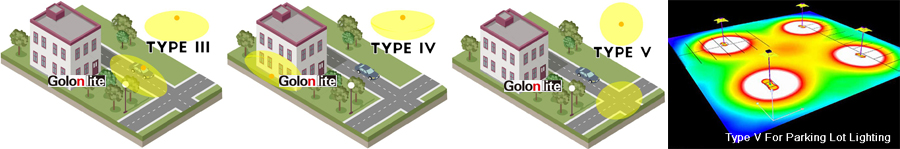

Multiple Light Distribution Options---200W LED Parking Lot Light And Shoebox Lights
Golon follows the North American IESNA standard in providing the optional lens with Type III Type IV and Type V. Golon selects the most suitable lens for its customer by project.
Type II: More narrow distribution type that projects most of the light to the sides with very little light shining behind the fixture. Typically used for highway on and exit ramps, residential streets, and wide walkways. Type II is for 2 lanes road.
Type III: Similar to type II with light projecting out further. Designed for general parking areas and roadways. Be for 3 lanes and even wider road.
Type IV :Designed for installation of the sides or buildings, the perimeter of parking areas, and side-of-road lighting.
Type V: Circular light distribution type with the same amount of light projected at all angles. Designed for large open spaces like intersections, large parking lots, and roadway medians.
LED Shoebox Lights Mounting Styles
Options---LED Parking Lot & Shoebox Light
