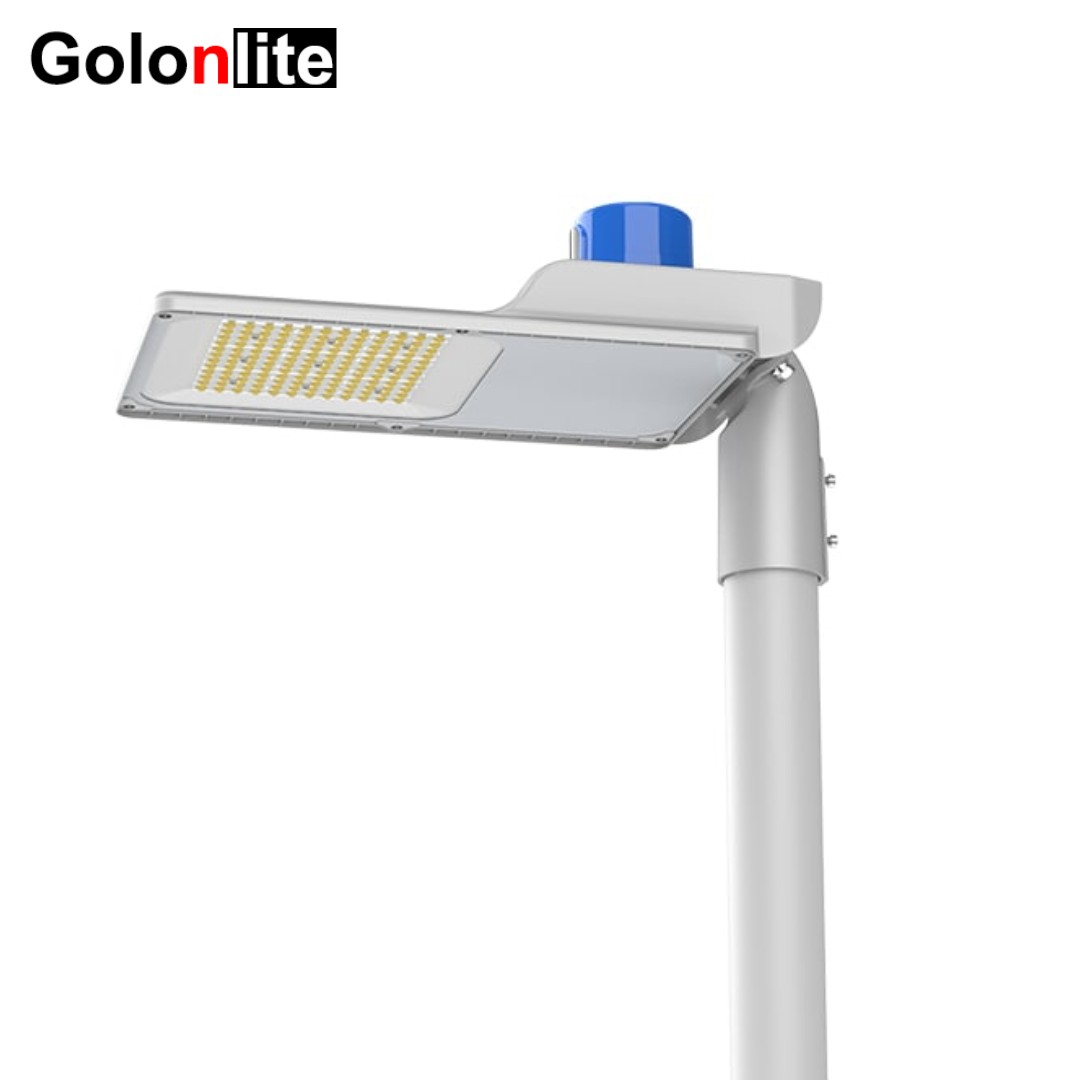

100W 80W 70W led street light for Area,roadway Lighting,180Lm/W,replace Philips Streetstar G2 led street light BRP24X Series,Suitable for streets, parks, highways, industries.
Main Features
High luminaire efficiency up to 180lm/w.
Wide power range: 20W~200W.
IP66 and IK08 protection rate. 5 years warranty
Smooth body would greatly diminish dust accumulation and bird droppings heap up.
Vertical and horizontal installation both available, adjustable by ±15°in both directions.
Multiple lighting control options are available, e.g. DALI, 1-10V, photocell,Timer dimming
Quality 10KV surge protector ensures reliable and steady operating.
Specifications
| Product Type | LED Street Lamp | ||
| Model No. | GL-SL-70WS2 | GL-SL-80WS2 | GL-SL-100WS2 |
| Power | 70W | 80W | 100W |
| Lumens | 12,600LM(180lm/w) | 14,400LM(180lm/w) | 18,000LM(180lm/w) |
| Input Voltage | AC 100-277V 50/60Hz | ||
| Light Source | SMD3030 OR SMD5050 | ||
| CRI | >70RA (Ra80 optional) | ||
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K | ||
| Beam Angle | TypeII, TypeIII, Type IV | ||
| DIMMABLE | Non-dimmable / Dimmable | ||
| Driver Power | Meanwell / Sosen | ||
| Power Factor | >0.95 | ||
| Protection level | IP66 IK08 | ||
| Product Dimension | 575*242*109mm | ||
| Weight | 3.8KG | ||
| CTN Size | 630×250×145mm (1PC/CTN) | ||
| Life Span | >50,000 hours | ||
| Warranty | 5 Years Warranty | ||
| Certified | CE ROHS | ||
Dimension of 70W 80W 100W LED Street Light For Area Roadway Lighting
Installation optional
Photometrics
Multiple optical lens TypeII, TypeIII, Type IV Light utilization rate ≥80%.
Self-clean
1. The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.
2. The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.
NEMA Socket 3PIN 5PIN 7PIN
The 40w led street light operating depends on the ambient luminance. When it is dark or dawn, it will lighten with a suitable luminance automatically.
By intelligent control, we can set and switch to lower costs which saves 20-50% energy and extends 2 or 4 times lifespan.
70W 80W 100W LED Street Light For Area Roadway Lighting Features
Applications
70W 80W 100W LED Street Light For Area Roadway Lighting cover wide range. And for a demanding requirement for street light in the market, energy saving and easy maintenance are critical. Golon led street light series take every aspect into consideration. Power ranges from 20W to 200W for different applications such as roadway, pathway, outside parking lot, rural road, car dealership, etc. Multiple light distributions and with intelligent control system which contributes to managed-costs, managed-risks, and longer lifespan.
If you would like to purchase our led street lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
