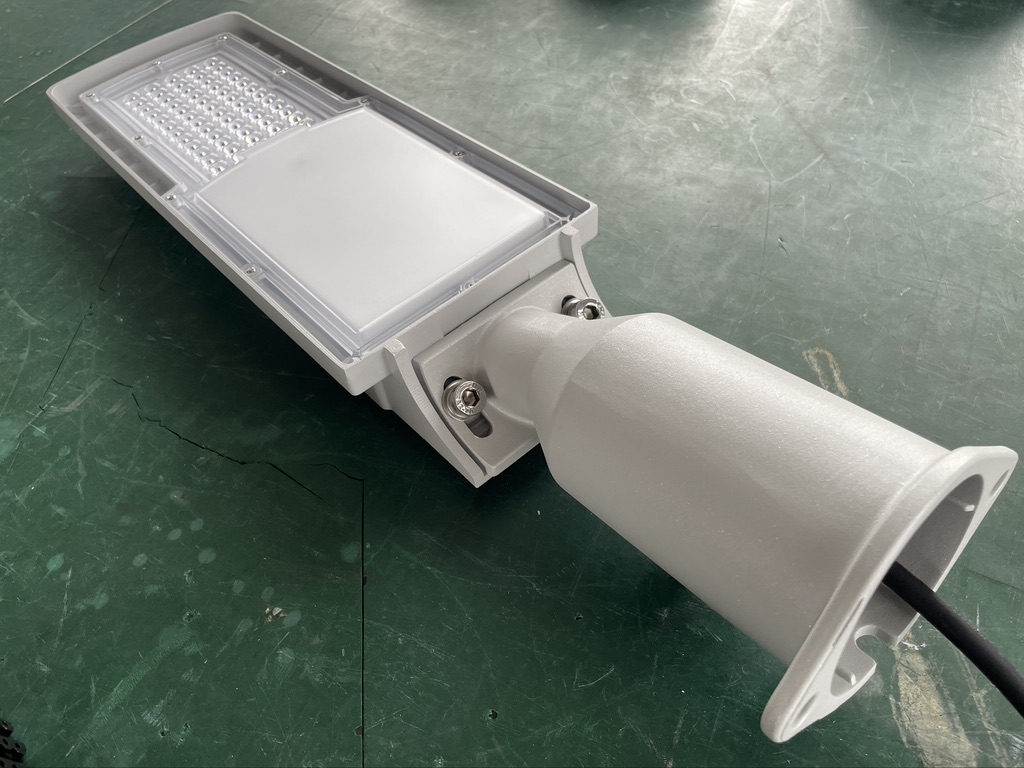

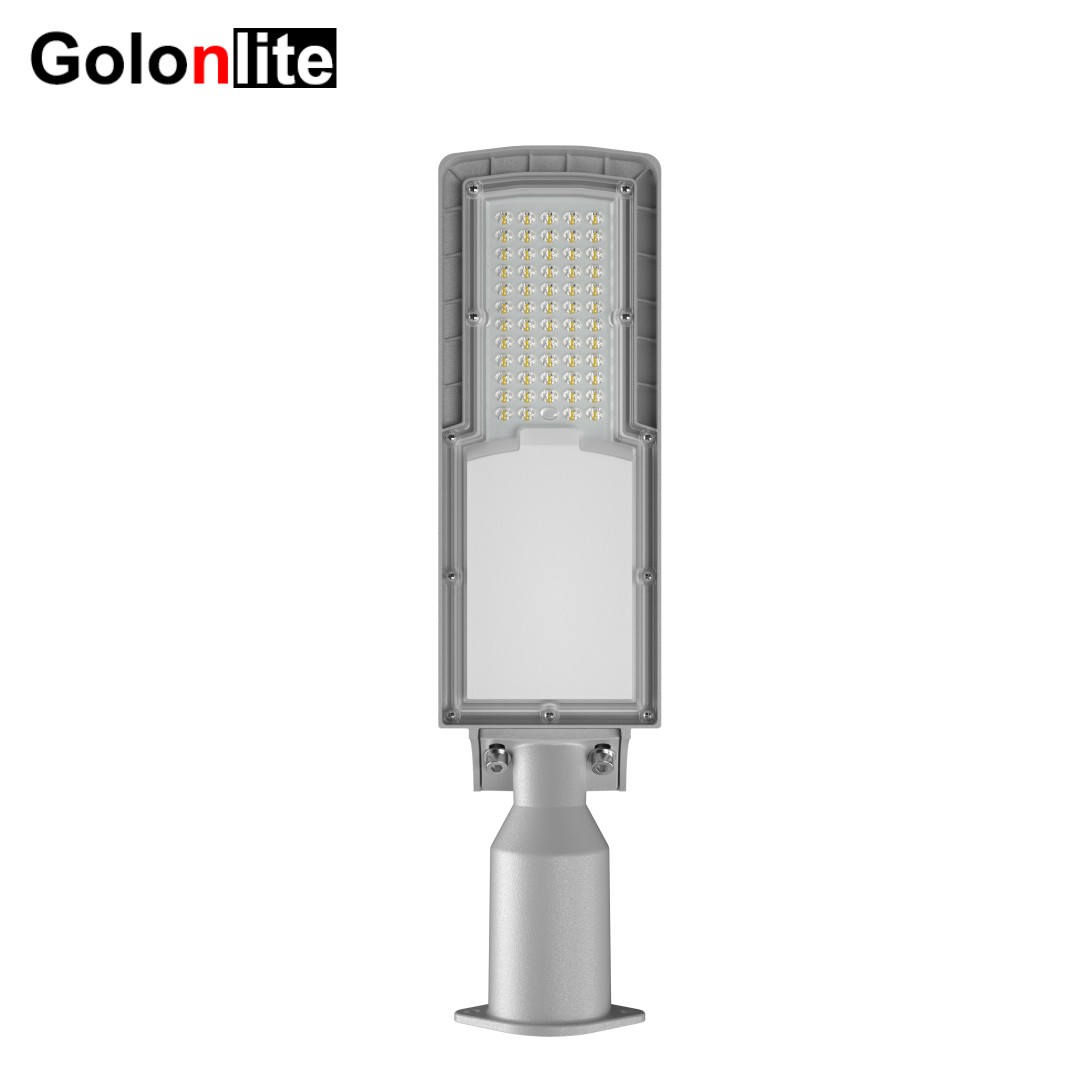

Ultra-economy 30W LED Street Light 20W Roadway Lighting Fixtures is professional tailored to roadway,Using modern high efficiency LEDs and professional optical lens, led street lamp can effectively replace traditional HID street light.
Main Features
High luminaire efficiency up to 160lm/w.
Wide power range: 20W~200W.
IP66 and IK08 protection rate. 5 years warranty
Smooth body would greatly diminish dust accumulation and bird droppings heap up.
Vertical and horizontal installation both available, adjustable by ±15° in both directions.
Quality 10KV surge protector ensures reliable and steady operating.
Specifications
| Product Type | LED Street Light | |
| Model No. | GL-SL-30WN2 | GL-SL-20WN2 |
| Power | 30W | 20W |
| Lumens | 4,800LM(160lm/w) | 3,200LM(160lm/w) |
| Input Voltage | AC 100-277V 50/60Hz | |
| Light Source | SMD2835 | |
| CRI | >70RA (Ra80 optional) | |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K | |
| Beam Angle | TypeII(70*140°) | |
| DIMMABLE | Non-dimmable / Dimmable | |
| Driver Power | MOSO / Sosen/DONE | |
| Power Factor | >0.95 | |
| Protection level | IP66 IK08 | |
| Product Dimension | 501*127*78mm | |
| Weight | 1.8KG | |
| CTN Size | 556×137×115mm (1PC/CTN) | |
| Life Span | >50,000 hours | |
| Warranty | 5 Years Warranty | |
| Certified | CE ROHS | |
Dimension of Ultra-economy 30W LED Street Light 20W Roadway Lighting fixtures

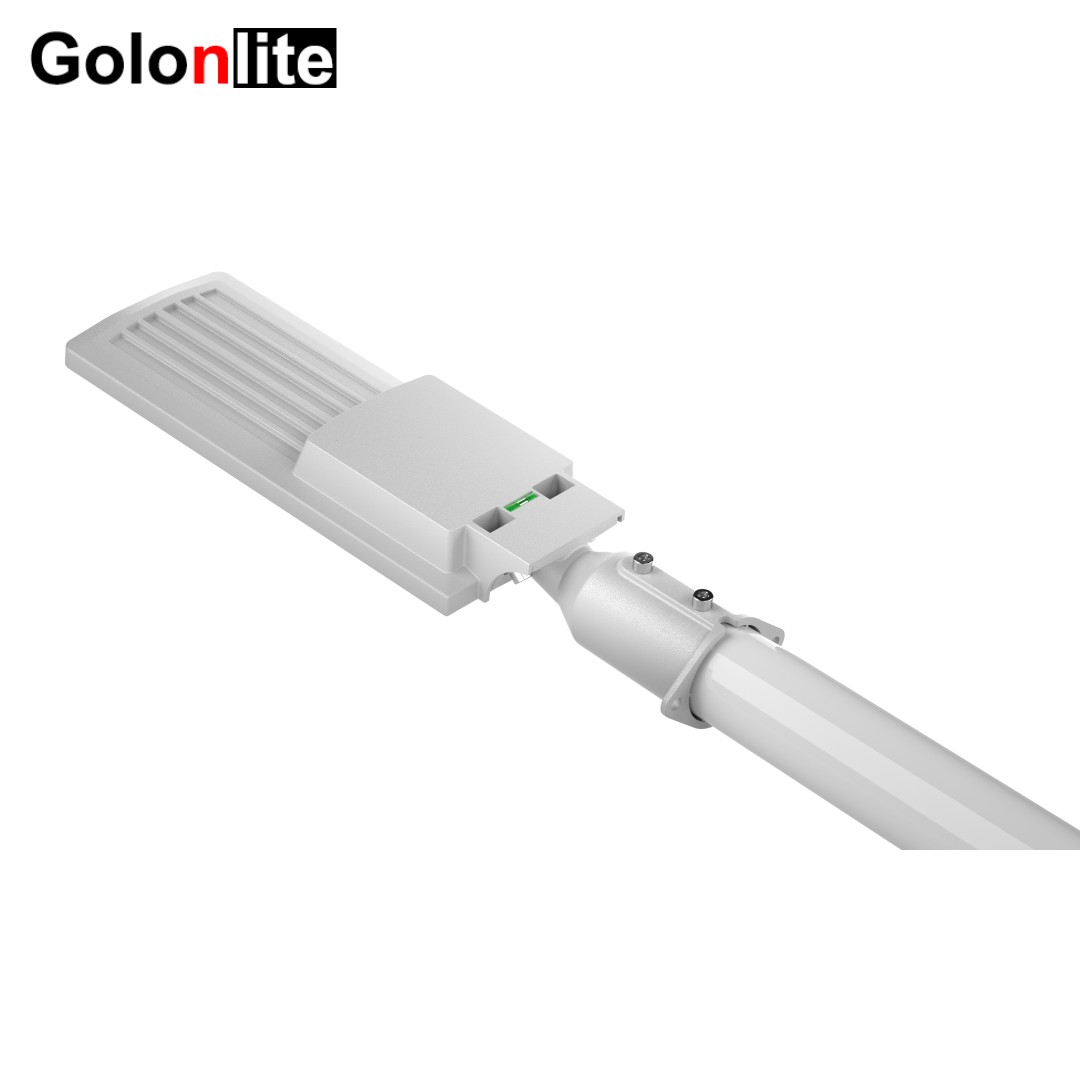

Installation optional
Installation angle optional -15°, -5°, 0°, 5°, 15°
Photometrics of Ultra-economy 30W LED Street Light 20W Roadway Lighting fixtures
Multiple optical lens Type II(70*140°) utilization rate ≥80%.
Self-clean Ultra-economy 30W LED Street Light 20W Roadway Lighting fixtures
1. The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.
2. The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.
NEMA Socket 3PIN 5PIN 7PIN
The light operating depends on the ambient luminance. When it is dark or dawn, it will lighten with a suitable luminance automatically.
By intelligent control, we can set and switch to lower costs which saves 20-50% energy and extends 2 or 4 times lifespan.

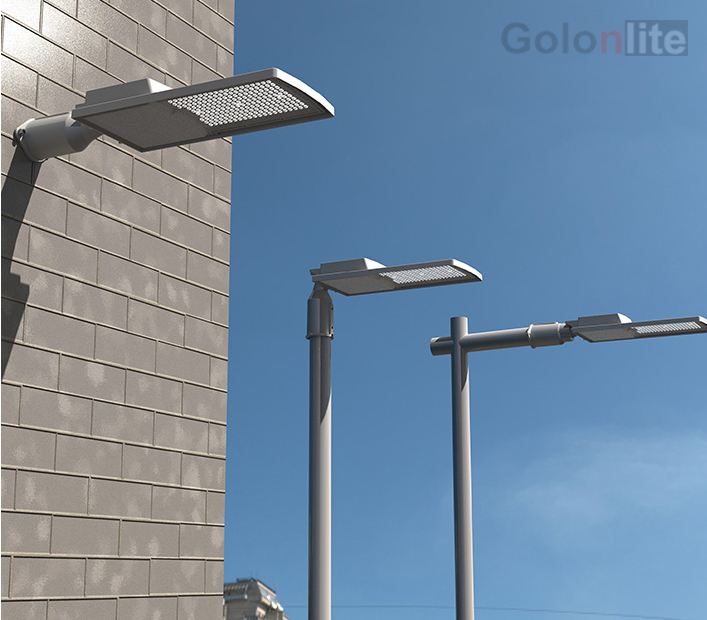

Applications Ultra-economy 30W LED Street Light 20W Roadway Lighting fixtures
The projects for roadway light cover wide range. And for a demanding requirement for street light in the market, energy saving and easy maintenance are critical. Golon street light series take every aspect into consideration. Power ranges from 20W to 200W for different applications such as roadway, pathway, outside parking lot, rural road, car dealership, etc. Multiple light distributions and with intelligent control system which contributes to managed-costs, managed-risks, and longer lifespan.
If you would like to purchase our led street lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
