1200W LED High Mast Flood Light 192000Lm/W Stadium Light. cut-off visor options.
Main Features

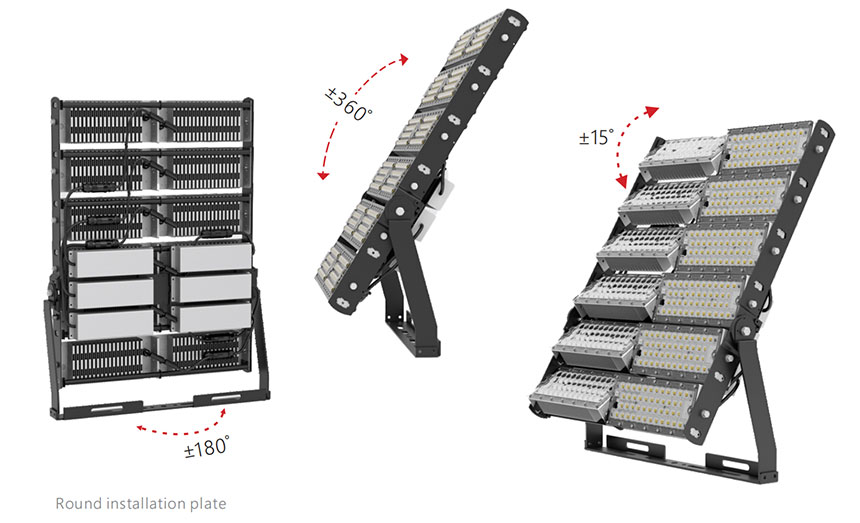

Rotatable module, Module rotatable up & down 15 degree.
Multiple optical Lens choices are available with angles including 20°/ 40°/ 60°/ 90°/140*100°/120° PC to meet the
demand of professional light distribution .
Original Philips SMD5050 which up to 150Lm/W-160LM/W.
Lengthened heavy duty mounting Bracket allowing for 360° rotation .
Adopts cooling fins which of large radiate area, excellent heat dissipation performance. Fins is light and reliable,
very convenient for shipping、installation and maintenance
IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion
This Series LED High Mast Light features adoption of Lumileds 5050 Light source and UL TUV Power Supply, This latest design focuses on high lumen output and provides photometric combinations with 160lm/w high efficacy, providing the ability to serve demanding area applications where spacing is wide and illuminance requirements are high. Rotatable Modules Allowing for Custom Spread of Light and Eliminating Dark Areas. Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.
Specifications
| Product Type | Adjustable Rotating Module High Mast Flood Light |
| Model No. | GL-ST-1440W |
| Power | 1440W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 230,400LM |
| Luminous efficiency | 160LM/W |
| Light Source | Lumileds SMD5050 |
| LED Quantigy | 46PCS×12Modules (552pcs total) |
| CRI | >70RA |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 20°/40°/60°/90°/140×100°/ Milky PC 120° |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | Meanwell / Sosen |
| Power Factor | >0.95 |
| IP Rating | IP65 |
| Product Dimension | 650×861×132mm |
| Weight | 29KG |
| CTN Size | 710×910×180mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |
Dimension
Adjustable Rotating LED Flood Light
Photometrics
LED module high mast light from 100W-1440W with various beam angle, adjustable module and 150-160lm/w high efficiency which can match the different projects more.
Applications
The High Mast Light Uniquely Designed Featuring Rotatable Modules Allowing for Custom Spread of Light and Eliminating Dark Areas. Widely use in Warehouses, Storage Bays, Arenas, Stadiums, Athletic Fields, Tennis Courts, Basketball Courts, Golf Driving Ranges, Manufacturing Plants, Oil Fields, Security Lighting and so on.
Golon is a manufacturer of high power led lights, stadium flood lights, sport arenas, airports, harbors, lighting towers, baseball stadiums, football stadiums, rugby stadiums, hockey stadiums, ski resort lighting, among many other projects.
If you would like to purchase our Floodlights, you can contact us by phone or by mail.
