500W Soccer Field Stadium Flood Light,Offer Outdoor Football field lighting simulation. IES file
Main Features
5 years warranty
Multiple optical Lens choices are available with angles including 25° 40° 60° P50 to meet the demand of professional light distribution .
SMD5050 which up to 170Lm/W.
U shape rotatable bracket, the screw hole can adjust the beam angle from 0° to 120°.
Adopts cooling fins which of large radiate area, excellent heat dissipation performance. Fins is light and reliable, very convenient for shipping、installation and maintenance
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Tiny package and lighter,lower freight cost,more competitive in the market
1000W flood lights have such an extraordinarily high power to light up a standard football stadium, high masts, sports fields, square, Soccer Field, or even construction sites.
Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 70%.
Specifications - 500W LED Soccer Field Light For Stadium Lighting
| Item NO. | GL-ST-500WH |
| Input Voltage | 100-300VAC , 347-480VAC 50/60Hz |
| Wattage | 500W |
| Luminous Flux | 80,000 Lumen |
| Luminous efficiency | 160LM/W |
| Lihgt Source/ LED QTY | SMD 5050/ 190pcs |
| Driver Power | MOSO OR DONE |
| Dimension | 614mm*419mm*196mm |
| Weight(N.W / G.W) | 13KG / 14KG |
| CTN Size | 663*477*300mm 1PC/CTN |
| Equivalent | 200W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| Beam Angle | 25° /40°/ 60°/ P50 |
| Power Factor | >0.95 |
| Dimmable Sensor Options | Non-dimmable / 0-10V Dimmable/DALI/DMX |
| optical lens | Acrylic lens (Optical Grade) |
| IP Rating | IP66 |
| CRI | >70 |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 years Warranty |
| Rated Lifespan | 50,000+ hours |
| Certified | CE RoHS certified |

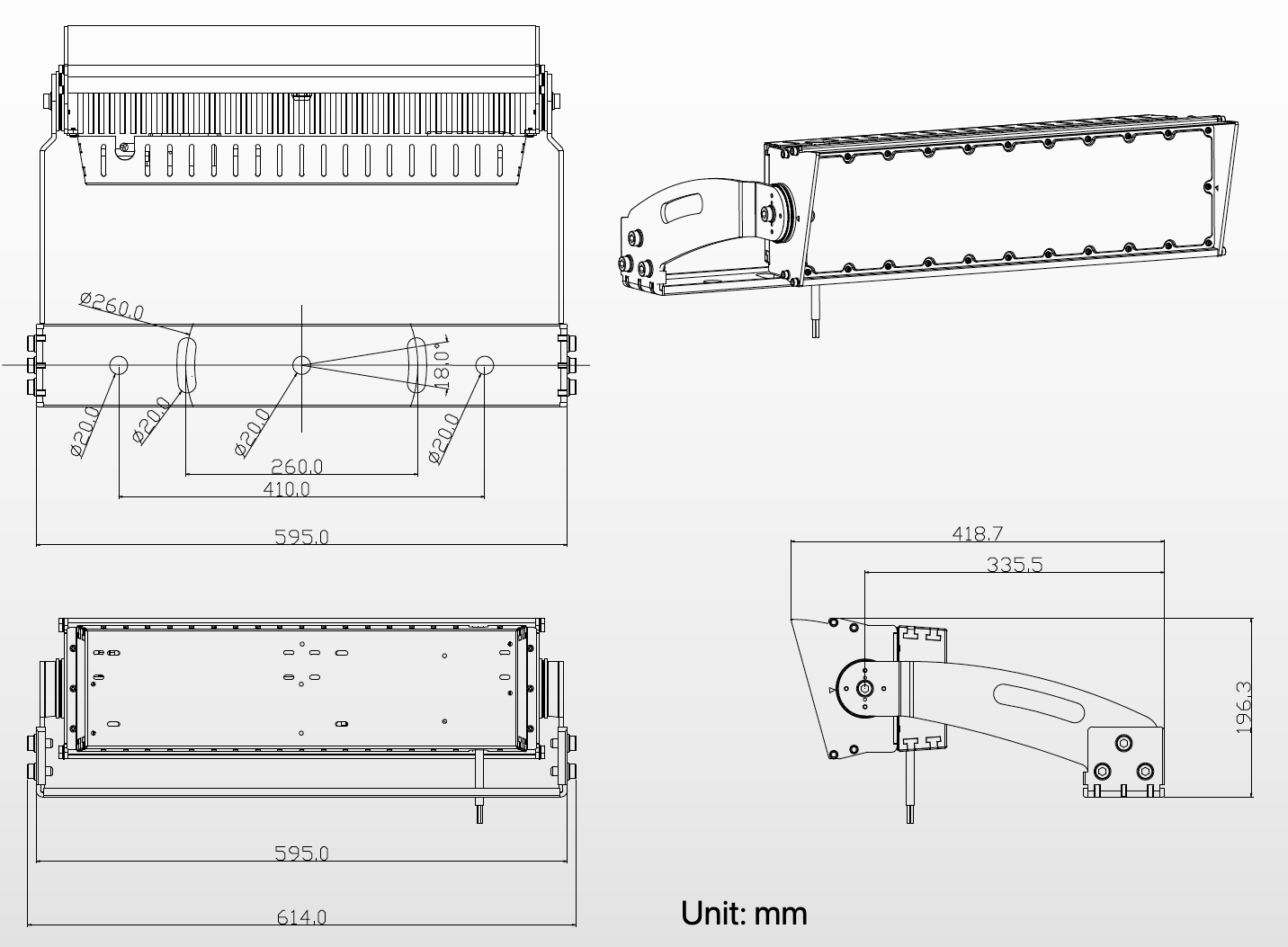

Dimensions 500W LED Stadium Light For Soccer Field Lighting

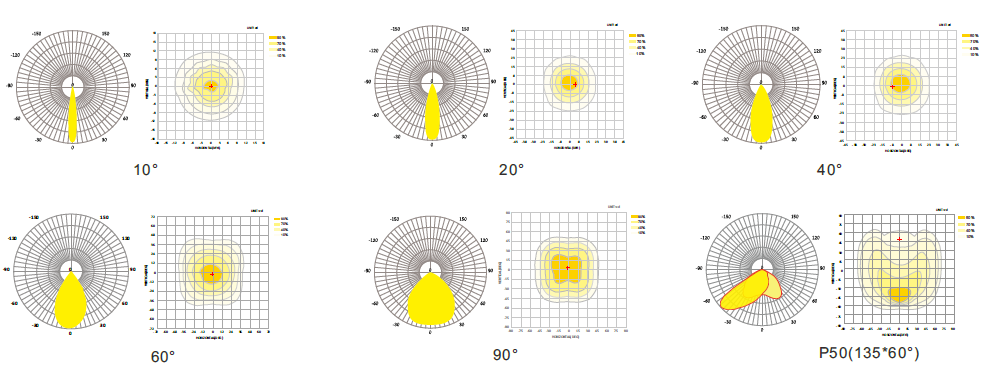

Multiple Light Distribution Options---500W High Power LED Flood Light And Stadium Lights
Golon LED Soccer field stadium lighting manufacturers, suppliers, exporters, OEM partners.
Golon LED Lighting LED Stadium Lights are designed to replace 400W to 5000W Metal Halide and HPS stadium lights. , widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, high-rise buildings, light towers, high mast lighting and etc.
Can also be applied to large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
