150W Gas Station LED Canopy Light
  • 150W Gas Station LED Canopy Light

    Product Abstract:
    Replacement for 500W Metal Halides gas station canopy lights with this ultra-slim, ultra-high-efficiency 150W LED canopy light.

    Replacement for 500W Metal Halides gas station canopy lights with this ultra-slim, ultra-high-efficiency Gas Station 150W LED Canopy Light.


    Main Features

    • 5 years warranty

    • Original Philips SMD3030 which up to 140Lm/W.

    • Multiple mounting options – Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces.

    • Better load carrying capability and heat dissipation with thicken design for die casting radiator

    • IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion

    • Tiny package and lighter,lower freight cost,more competitive in the market

    • Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 70%.


    Specifications - 150W Gas Staion LED Canopy Light


    Item NO.GL-GS-01
    Input Voltage100-300VAC
    Wattage150W
    Luminous Flux21,000 Lumen
    Luminous efficiency140LM/W
    Lihgt Source/ LED QTYPhilips SMD 3030/ 224pcs
    Driver PowerUL TUV CE RoHS approved driver
    Dimension

     382mm*382mm*49mm

    Weight(N.W / G.W)4.8KG / 5.5KG
    CTN Size40*40*22cm   1PC/CTN
    Equivalent600W HPS Equivalent
    CCT3000K/ 4000K/ 5000K/ 5700K/ 6500K
    Beam Angle
    120°
    Power Factor>0.95
    Dimmable Sensor OptionsNon-dimmable / 1-10V Dimmable/DALI
    Cap TypeBase Options:US,Europe,UK,Australia plug
    IP RatingIP65
    CRI>70
    Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
    Warranty5 years Warranty
    Rated Lifespan50,000+ hours
    CertifiedCE RoHS certified

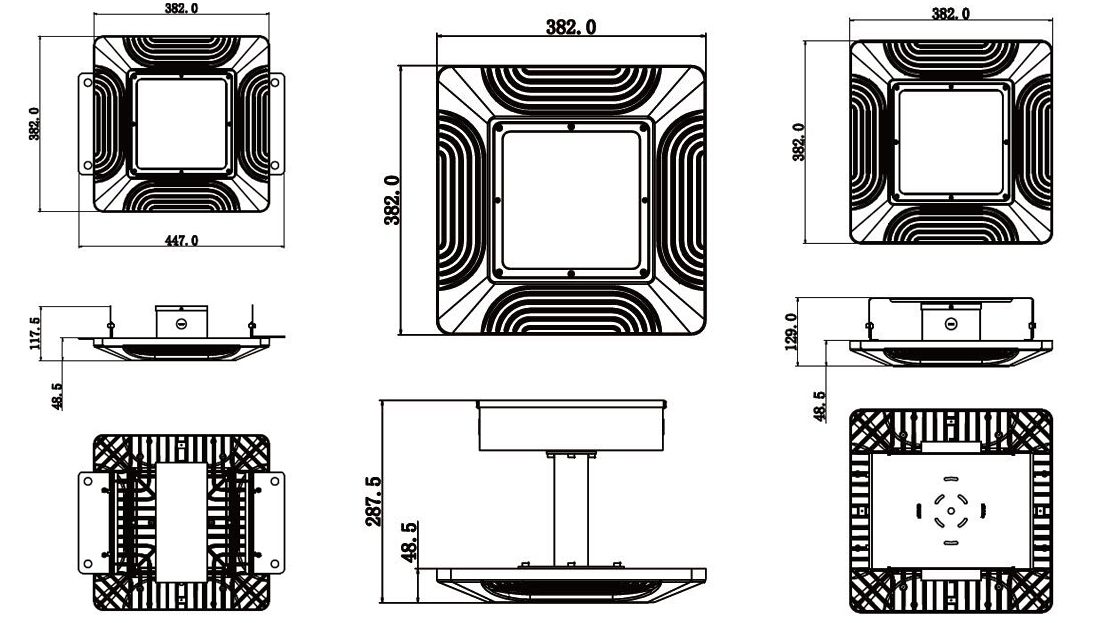

    Dimensions  150W Gas Staion LED Canopy Light

    150W Gas Station LED Canopy Light dimensions


    Different Installation Style Options---150W Gas Staion LED Canopy Light


    150W Gas Station LED Canopy Light

    150W Gas Station LED Canopy Light



     150W Gas Staion LED Canopy Light  Manufacturer


    Golon LED Lighting


    Golon LED Canopy Light For Gas Sation lighting manufacturers, suppliers, exporters, OEM partners.

    Golon LED Lighting LED Stadium Lights are designed to replace 400W to 5000W Metal Halide and HPS stadium lights. , widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, high-rise buildings, light towers, high mast lighting and etc.


    Can also be applied to large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
