960W Rotatable Module Equivalent to 2000W Metal Halide and HPS stadium lights,
Offer Outdoor Football field lighting simulation. IES file
Main Features

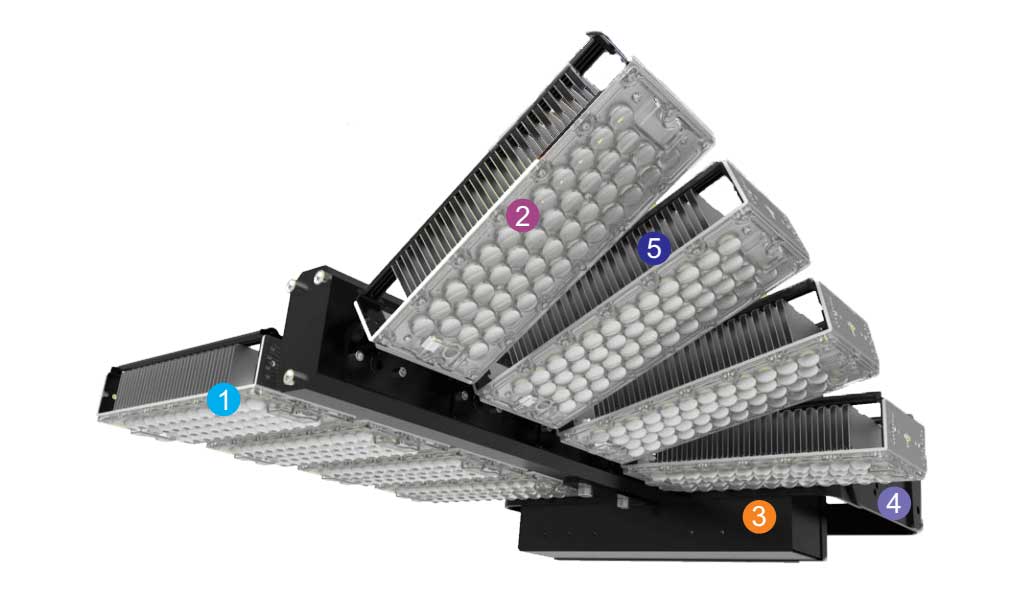

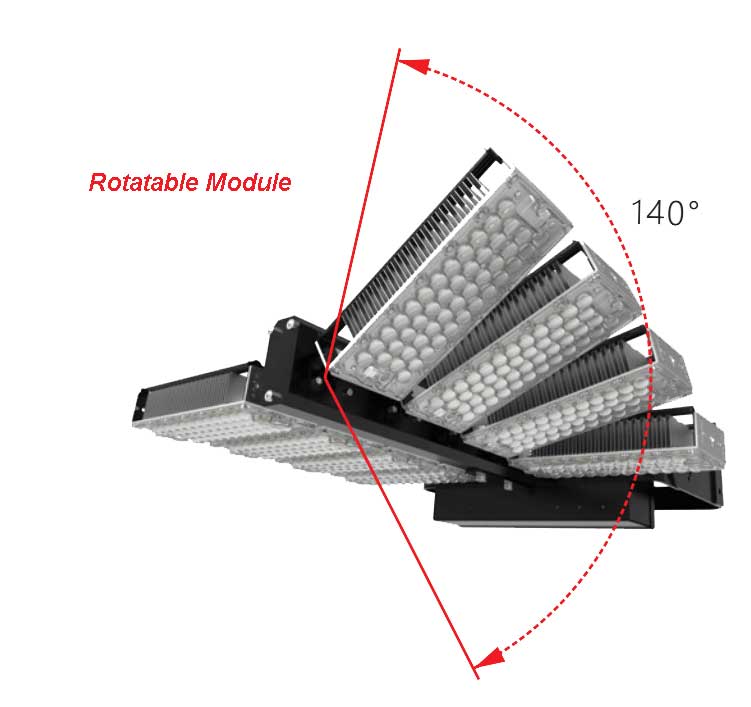

Rotatable module, Module rotatable up & down 15 degree.
Multiple optical Lens choices are available with angles including 20°/ 40°/ 60°/ 90°/140*100°/120° PC to meet the
demand of professional light distribution .
Original Philips SMD5050 which up to 150Lm/W-160LM/W.
Lengthened heavy duty mounting Bracket allowing for 360° rotation .
Adopts cooling fins which of large radiate area, excellent heat dissipation performance. Fins is light and reliable,
very convenient for shipping、installation and maintenance
IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other components,
these fixtures can withstand corrosive and salt intensive environments.
Specifications - 960W Rotatable LED Football Field Light For Stadium Lighting
| Item NO. | GL-ST-800W / GL-ST-960W |
| Input Voltage | 100-300VAC , 347-480VAC 50/60Hz |
| Wattage | 800W/960W |
| Luminous Flux | 128,000 Lumens/ 144000 Lumens |
| Luminous efficiency | 160LM/W (800W), 150LM/W (960W), |
| Lihgt Source/ LED QTY | Lumileds 5050 |
| Driver Power | UL TUV CE RoHS approved driver |
| Dimension | 694×268×855mm |
| Weight(N.W / G.W) | 30.62KG / 27.2KG |
| CTN Size | 772*760*420mm 1PC/CTN |
| Equivalent | 2000W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K |
| Beam Angle | 20° /40°/ 60°/ 90°/140 *100°/ 120° PC |
| Power Factor | >0.95 |
| Dimmable Sensor Options | Non-dimmable / Dimmable |
| optical lens | Acrylic lens (Optical Grade) |
| IP Rating | IP65 |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 Years Warranty |
| Rated Lifespan | 50,000+ Hours |
| Certified | CE RoHS Certified |

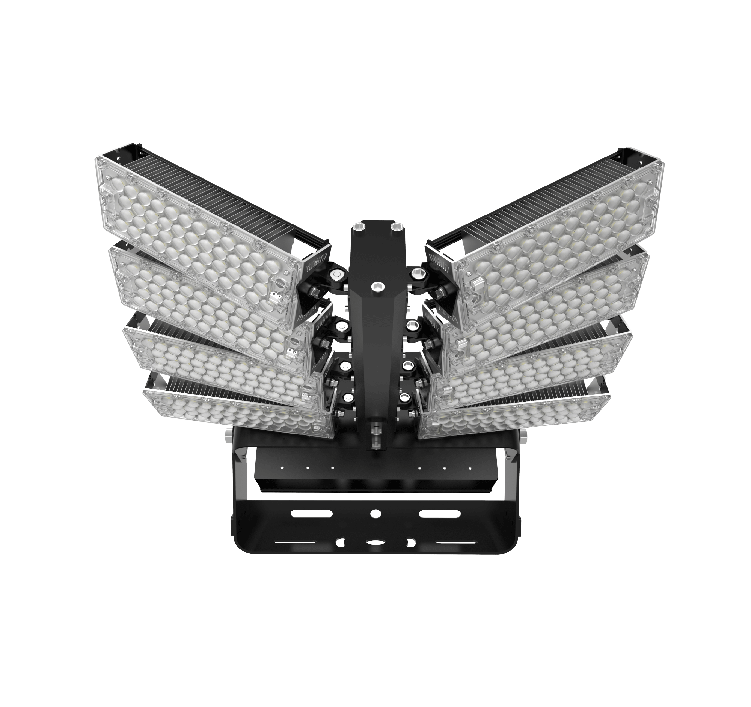

Rotatable Module 960W LED Flood Light

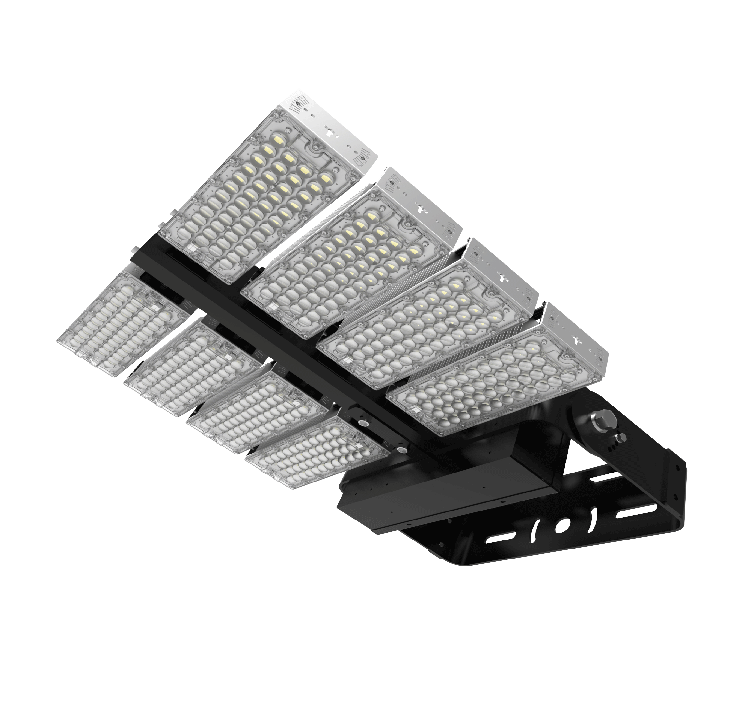

Rotatable Module 960W LED Flood Light
Photometrics: Multiple Light Distribution Options
High Power LED Stadium Lights 960W Manufacturer
Golon Rotatable LED Flood light, Stadium lighting,High mast light manufacturers, suppliers, exporters, OEM partners.
Golon LED Lighting LED Stadium Lights are designed to replace 400W to 5000W Metal Halide and HPS stadium lights. , widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, high-rise buildings, light towers, high mast lighting and etc. Can also be applied to large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
