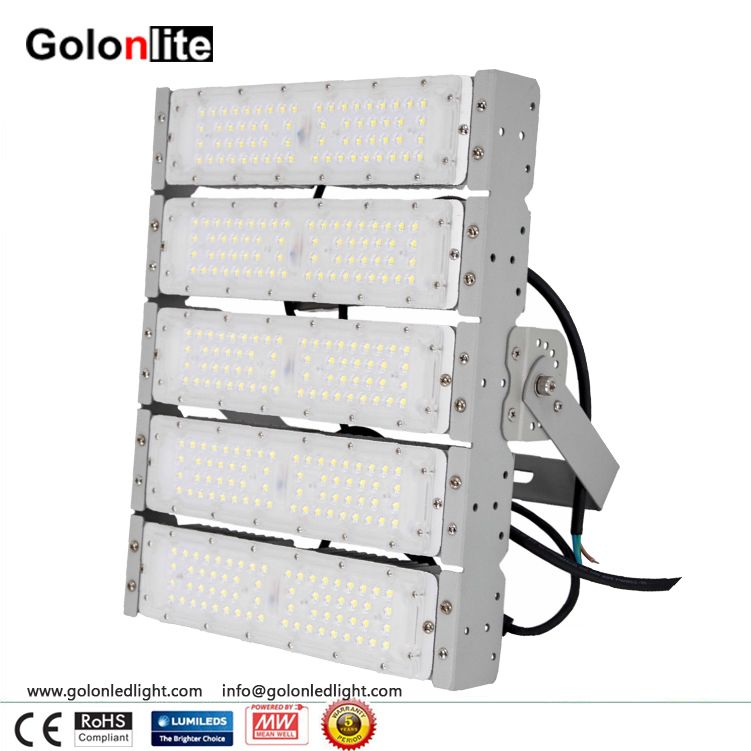

Golon 240W LED Modular Sports Flood Light IP66 Stadium Floodlight that Support Flexible Assembly.
The modular sport flood light supports flexible assembly of different wattage, from 50W to 1000W. As the main light for large-area illumination, are widely used in many scenarios, such as factories, billboards, highways, railways, tunnels, bridges, culverts, squares, stadiums, buildings, etc.
Modular system, Maintenance free of tools,Light and resistant,Easy Installation
Main Features
Modular design.
Stock single module 50W, easy to assemble 100W-1000W
Various angles are available (60°, 90°,70°*145°).
High efficiency up to 150lm/w.
Philips SMD3030, 5 years warranty.
Provide multiple installation holes for options, application scenarios are more diverse
U shape rotatable bracket, the screw hole can adjust the beam angle from 0° to 180°.
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion.
The whole fittings comes with excellent heat dissipation, low temperature and longer span life.

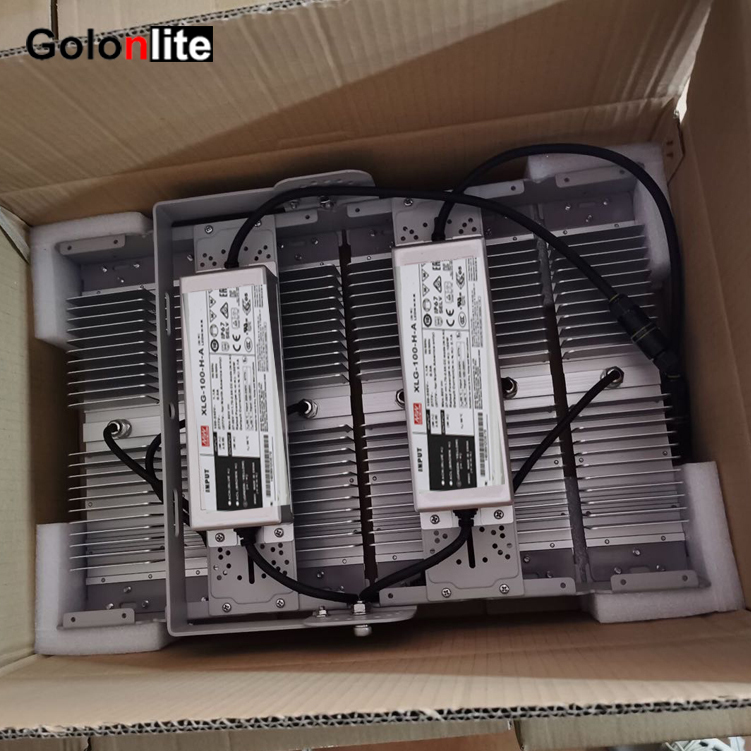

Tiny package and lighter,lower freight cost,more competitive in the market.
Specifications - Modular Design 250W LED Sport Flood Light 150Lm/W
| Item NO. | GL-TL-240W |
| Input Voltage | 100-277VAC 50/60Hz |
| Wattage | 240W |
| Luminous Flux | 36,000 Lumen |
| Luminous efficiency | 150LM/W |
| Lihgt Source | Philips SMD 3030 |
| Dimension | 316mm*215mm*396mm |
| Weight | 5.3KG |
| Equivalent | 750W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| Beam Angle | 60° / 90°/ 70° X145° |
| Power Factor | >0.95 |
| Color Rendering Index | Ra70 (Ra80,Ra90 optional) |
| optical lens | PC lens (Optical Grade) |
| IP&IK Rating | IP66/IK08 |
| Certified | CE |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 years Warranty |
| Rated Lifespan | 50,000+ hours |

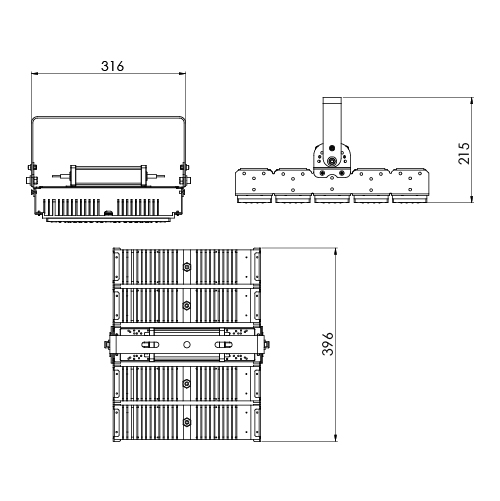

Dimensions 240W Modular LED Sport Flood Light
Modular Spotlight 240W LED sport stadium Light
LED flood tunnel lights are high efficiency specialized commercial grade area flood light used in applications where day light is required including sports stadiums, factories, loading docks, building/bridge lighting, etc. Available in 50W, 100W,150W, 200W, 240W, 300W, 400W,500W, 600W, 800W or 1000W modules, and multiple beam angles including both symmetric 60°, 90° and 70° x 145° there is enough flexibility to suite any application and tower height whilst achieving the most optimal and uniform lighting distribution
Starting with the 50-watt single unit and going all the way up to the 1000-watt twelve module unit. The Modular range is fitted with the 64pcs leds enabling this to deliver a massive150 Lumens Per Watt. As with all our high-quality powered LED lights, this range comes with the Meanwell HLG/ELG driver for a solid 5-year warranty. The casing comes in a clean silver or black finish and can also come with a full dimming option if required. This Modular Flood Light is now becoming one of the first options for clients when it comes to Sports Flood Lighting. If you need more information about this product and the latest quotation, please feel free to contact us.
