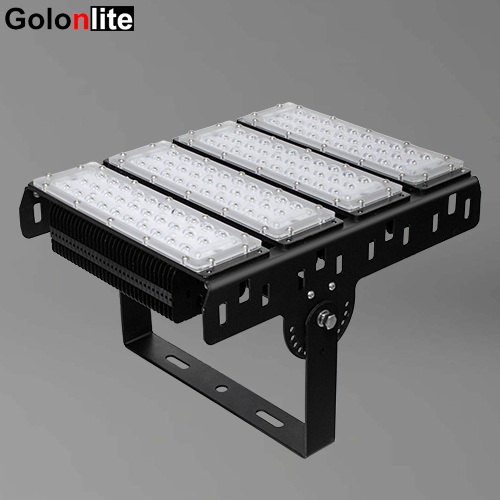

Golon Modular LED Projectors Floodlights that Support Flexible Assembly
The modular flood tunnel light supports flexible assembly of different wattage, from 50W to 1000W. As the main light for large-area illumination, are widely used in many scenarios, such as factories, billboards, highways, railways, tunnels, bridges, culverts, squares, stadiums, buildings, etc.
Modular system, Maintenance free of tools,Light and resistant,Easy Installation
Main Features
Modular design.
Stock single module 50W, easy to assemble 100W-1000W
Various angles are available (60°, 90°,70°*145°).
High efficiency up to 150lm/w.
Philips SMD3030, 5 years warranty.
Provide multiple installation holes for options, application scenarios are more diverse
U shape rotatable bracket, the screw hole can adjust the beam angle from 0° to 180°.
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion.
The whole fittings comes with excellent heat dissipation, low temperature and longer span life.
Tiny package and lighter,lower freight cost,more competitive in the market.
Specifications - Modular Design 50W LED Flood Light 150Lm/W
| Item NO. | GL-TL-50W |
| Input Voltage | 100-277VAC 50/60Hz |
| Wattage | 50W |
| Luminous Flux | 7,500 Lumen |
| Luminous efficiency | 150LM/W |
| Lihgt Source | Philips SMD 3030 |
| Dimension | 316mm*215mm*76mm |
| Weight | 2.1KG |
| Equivalent | 100W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| Beam Angle | 60° / 90°/ 70° X145° |
| Power Factor | >0.95 |
| optical lens | PC lens (Optical Grade) |
| IP Rating | IP66 |
| Certified | CE |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 years Warranty |
| Rated Lifespan | 50,000+ hours |

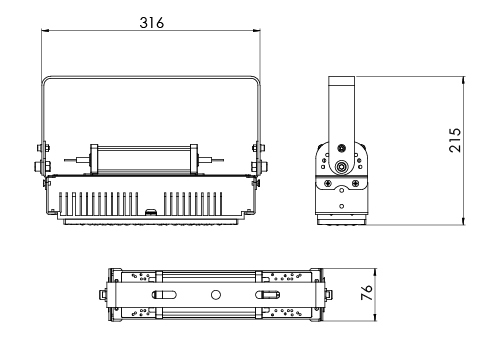

Dimensions 50W LED Flood Light

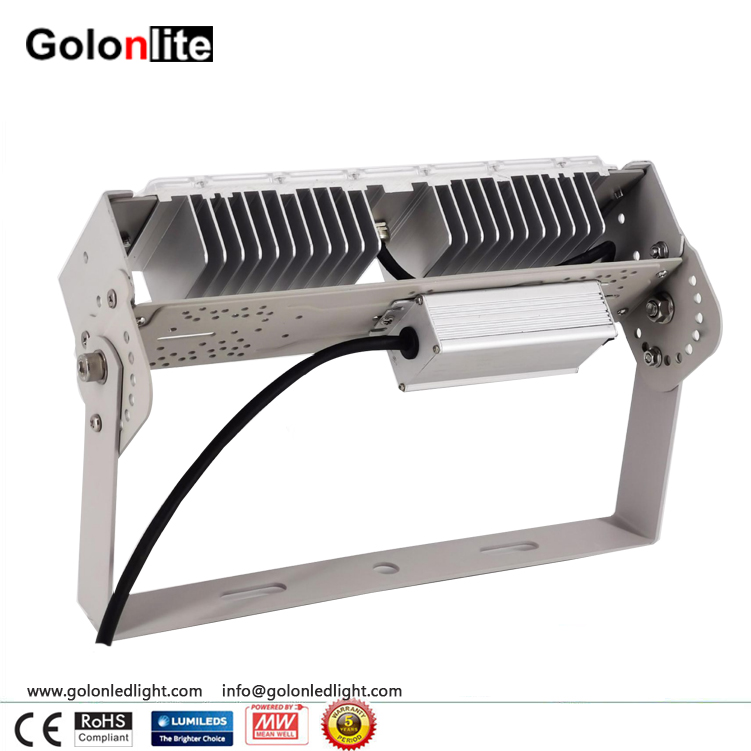

50W Modular Projectors LED Flood Light
LED flood tunnel lights are high efficiency specialized commercial grade area flood light used in applications where day light is required including sports stadiums, factories, loading docks, building/bridge lighting, etc. Available in 50W, 100W,150W, 200W, 240W, 300W, 400W,500W, 600W, 800W or 1000W modules, and multiple beam angles including both symmetric 60°, 90° and 70° x 145° there is enough flexibility to suite any application and tower height whilst achieving the most optimal and uniform lighting distribution
The LED projectors light have a modular system that provides easy maintenance and provides excellent performance and versatility in public, industrial and commercial applications. Modern and bold design with high mechanical resistance, it stands out for providing easy installation and having low weight. Uses LED technology suitable for professional lighting,Due to the advanced optical system, the set of LED and lens provides high luminous uniformity and excellent light distribution, reducing glare and increasing lighting rates.
