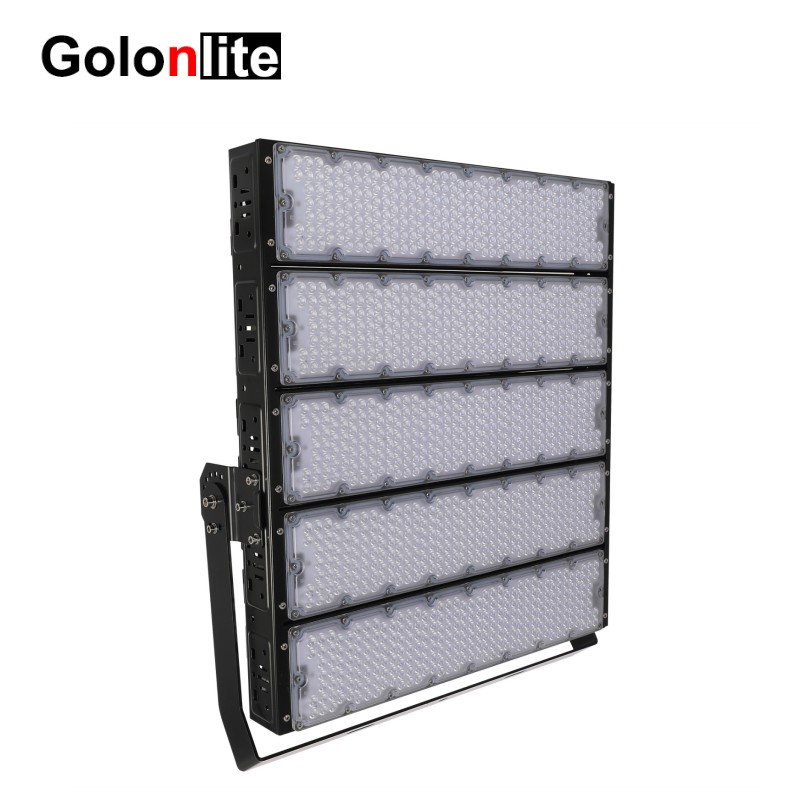

Ultra-economy LED Football Stadium Lights 1200W High Mast Flood Light 160LM, Stadium High Mast Lighting Manufacturer and Supplier of Golon China.
Main Features
High Power 5050 SMD Chips with an efficacy of 160lm/W.
Wide power range: 240W~1440W.
20°/40°/60°/90°/P50 (asymmetrical beam angle) optics available.
Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm
IP66 and IK08 protection rate. 5 years warranty
270° rotatable bracket with each module being able to tilt independently reducing light spillage
Built in 10kV surge protection allowing for use within the most demanding environments
Specifications
| Product Type | LED High Mast Flood Light |
| Model No. | GL-ST-1200WG |
| Power | 1200W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 192,000LM(160lm/w) |
| Light Source | SMD5050 |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 20°,40°, 60°, 90°, P50°, |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | MOSO/MEANWELL/DONE |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 621*584*146mm |
| Weight | 23KG |
| CTN Size | 610×720×200mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

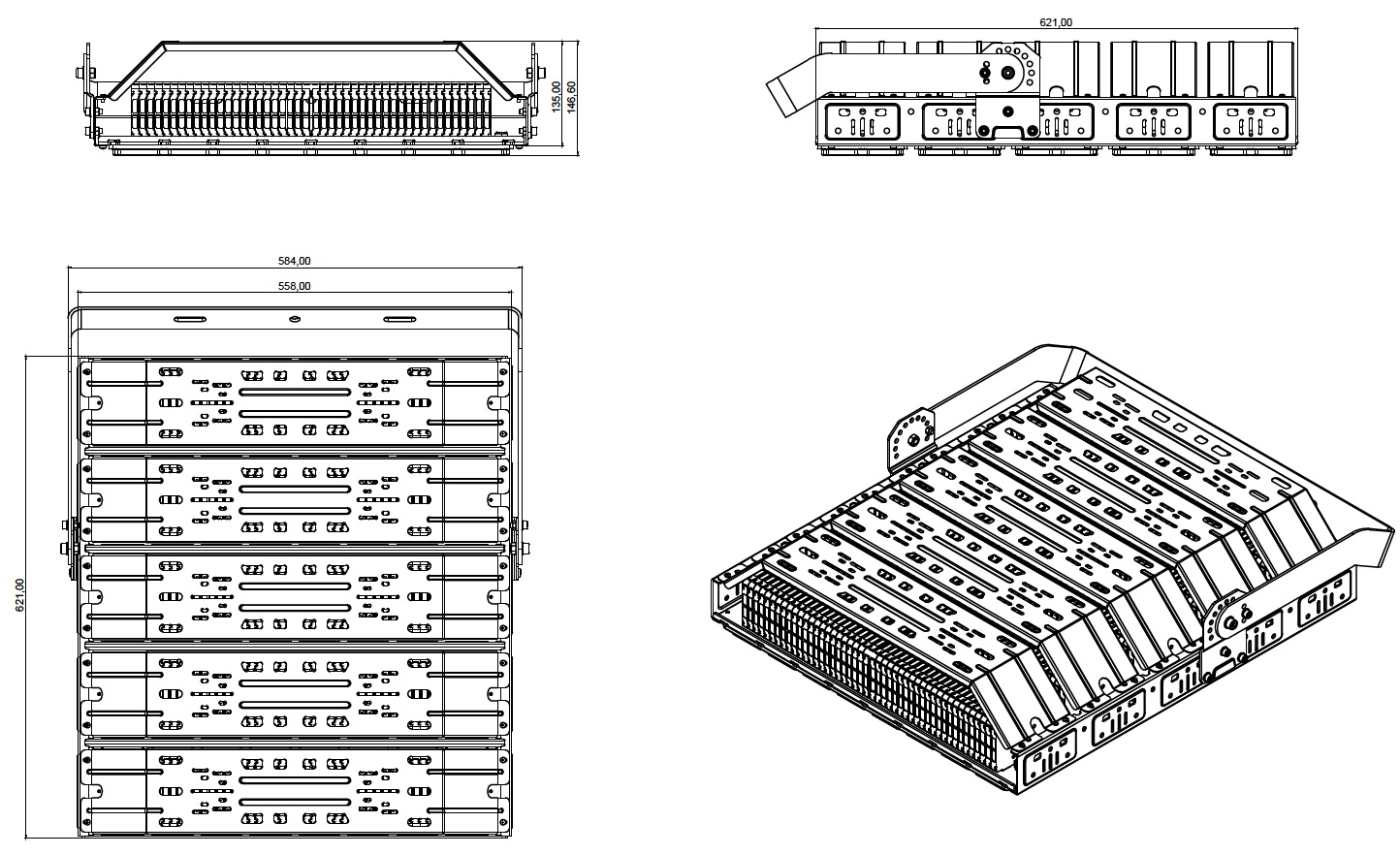

Dimension OF 1200W LED LED Football Stadium Light
Installation optional
Photometrics for 1200W LED Football Stadium Lights Tennis Court
Multiple optical lens 20°/40°/60°/90°/P50 (asymmetrical beam angle) optics available, Light utilization rate ≥80%.
Accessorries
DIALux lighting design for 1200W LED Football Stadium Light 1000W
We are not only the manufacturer and wholesell supplier, but also the lighting project designer. Please send us your stadium field datas, and we will make a DIALux light simulation to provide you the best lighting solution.

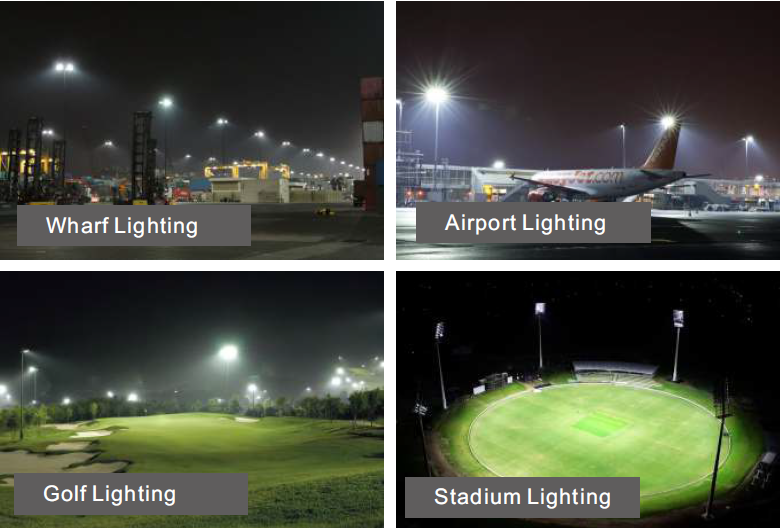

Applications for Soccer Field LED Flood light 1200W LED Football Stadium Light
Soccer Field LED light 1200W LED Football Stadium Light 1000W . Multiple light distributions and with intelligent control system which contributes to managed-costs, managed-risks, and longer lifespan.
If you would like to purchase our 960W 1000W 1200W 1440W 1500W Basketball Volleyball Golf Tennis Court stadium flood lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
