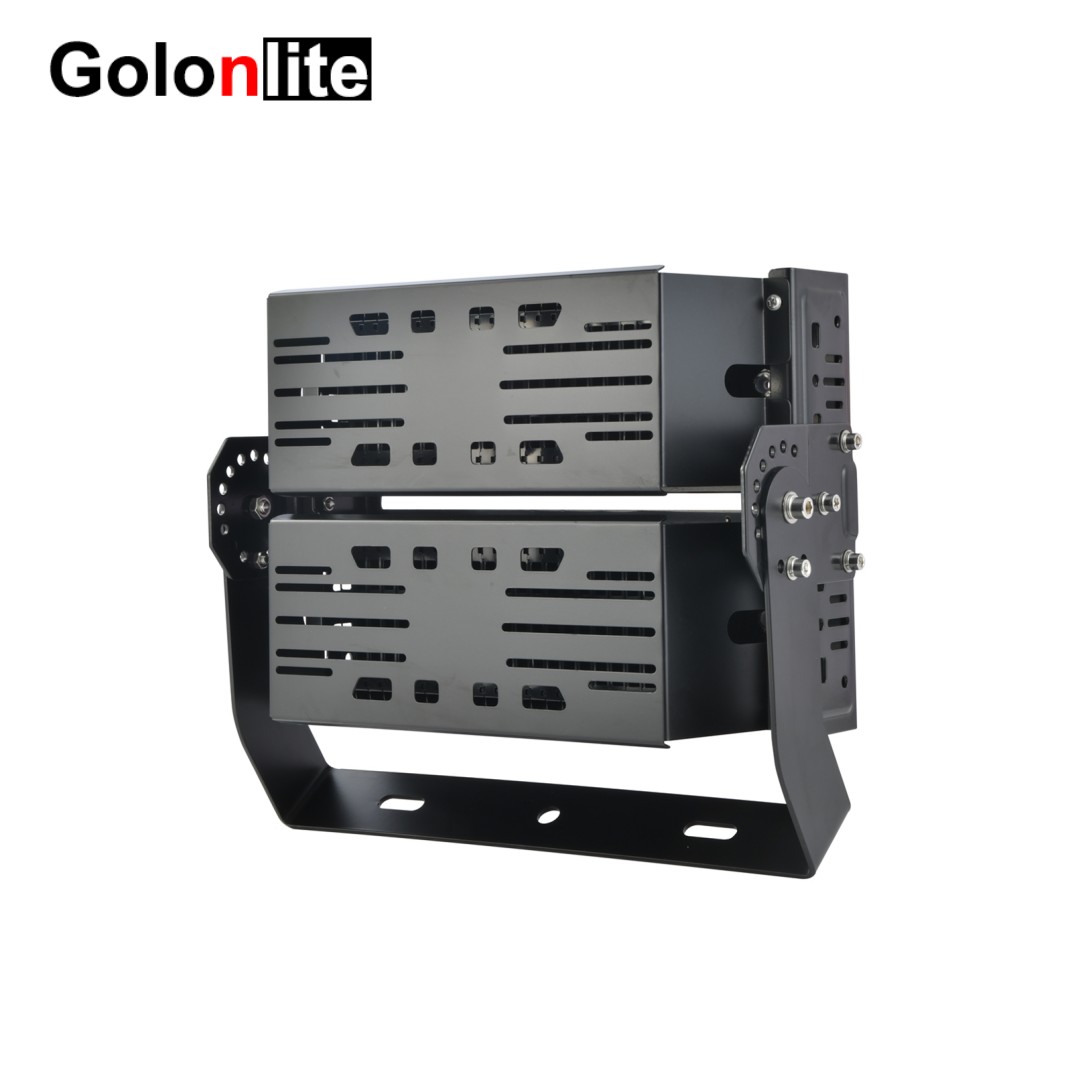

200W Golon LED tennis court lighting make simple lighting solutions for residential and commercial tennis courts, led tennis court lights are designed to illuminate playing areas with smooth, clear lighting while reducing off court glare.
Main Features
High Power 5050/3030 SMD Chips with an efficacy of 150lm/W.
Wide power range: 1000W~500W.
20°/40°/60°/90°/P50 (asymmetrical beam angle) optics available.
Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm
IP66 and IK08 protection rate. 5 years warranty
270° rotatable bracket with each module being able to tilt independently reducing light spillage
Built in 10kV surge protection allowing for use within the most demanding environments
Specifications
| Product Type | LED Flood Light |
| Model No. | GL-TL-200WC |
| Power | 200W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 30,000LM(150lm/w) |
| Light Source | SMD5050/ SMD3030 |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 20°,40°, 60°, 90°, P50°, |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | MOSO/MEANWELL/DONE |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 250*366*143mm |
| Weight | 5KG |
| CTN Size | 395×170×315mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

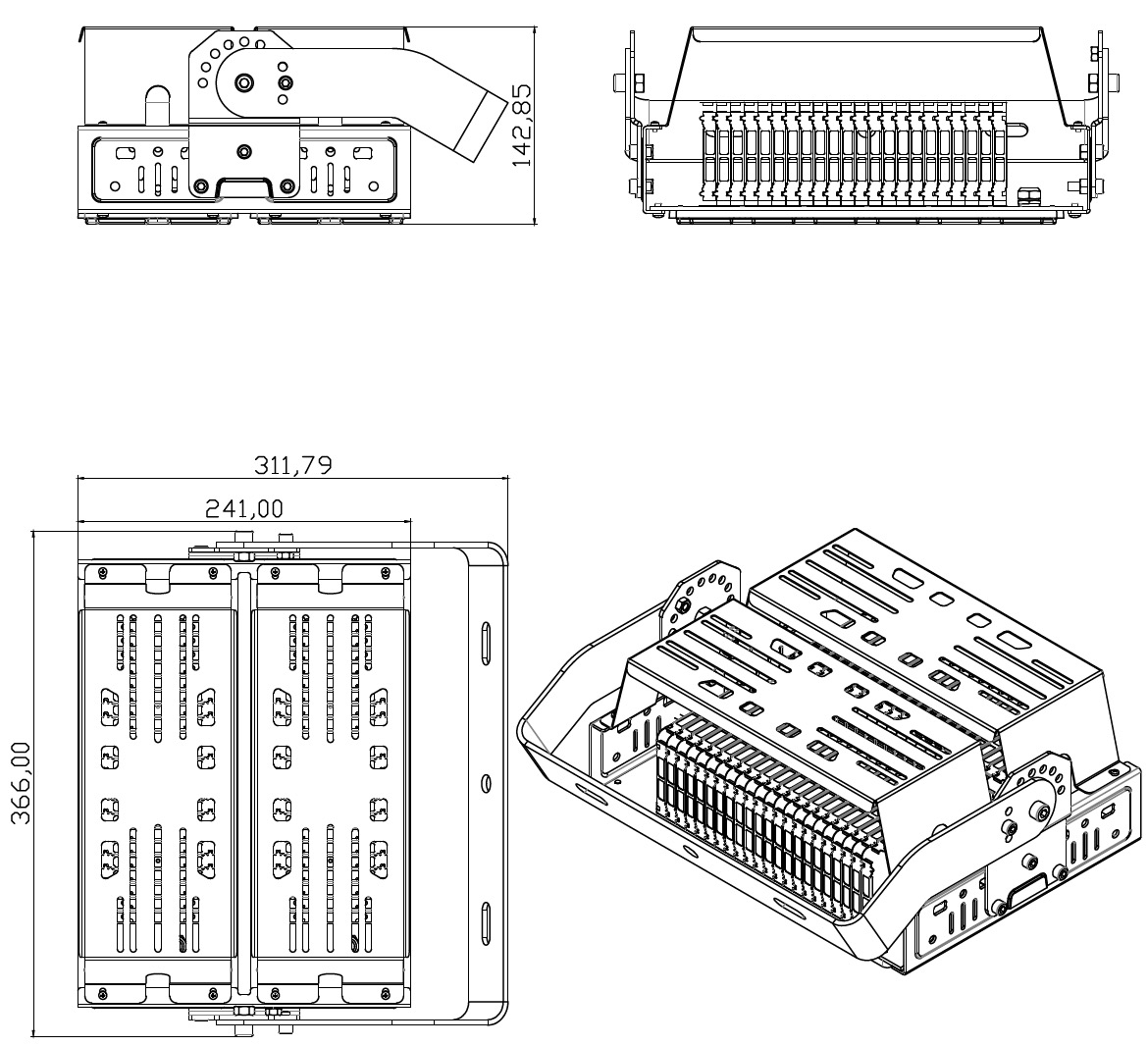

Dimension Of 200W LED Tennis Court Light
Installation optional
Photometrics for 200W LED Tennis Court Light
Multiple optical lens 20°/40°/60°/90°/P50 (asymmetrical beam angle) optics available, Light utilization rate ≥80%.
Accessorries
DIALux lighting design for 200W LED Tennis Court Light
We are not only the manufacturer and wholesell supplier, but also the lighting project designer. Please send us your stadium field datas, and we will make a DIALux light simulation to provide you the best lighting solution.
Applications for 200W LED Tennis Court Light
200W LED Tennis Court Light. Multiple light distributions and with intelligent control system which contributes to managed-costs, managed-risks, and longer lifespan.
If you would like to purchase our 100W 200W 300W 400W 500W LED Tennis Court Light , you can contact us by phone or by mail for more detailed information and the latest quotation.
