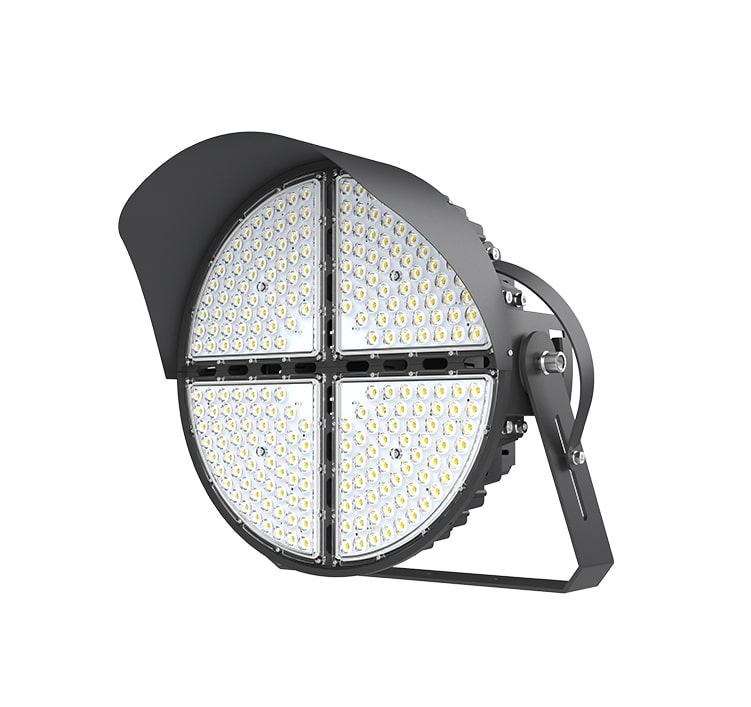

600W LED round sport floodlight, ideal for use at the larger soccer field, stadiums, etc. It has a huge advantage for high pole mounting where requires precise lighting performance on every position on the ground. Thanks to professional optic design, the lighting distribution available in 10deg, this sport floodlight fixture can bolt on a visor to minimize glare and can be adjusted vertically also horizontally, which makes sure each place has enough lighting, finally bring you a fantastic lighting uniformity.
Main Features
High luminaire efficiency up to 150lm/w.
Die-casting Aluminum allows superior thermal management to ensure long lifetime.
With illumination equivalent to 1200 watt metal halide fixtures.
DIM 1-10V (dim-mable from 10% to 100%) or DALI.
IP66 and IK08 protection rate.
Specifications
| Product Type | LED Sport Floodlight |
| Model No. | GL-FR-600W |
| Power | 600W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 90,000LM(150lm/w) |
| Light Source | Lumileds SMD5050 |
| LED Quantigy | 240pcs total |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 10°/25°/60° |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | Meanwell / Sosen |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 490*330 |
| Weight | 20.5KG |
| CTN Size | 710×530×270mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

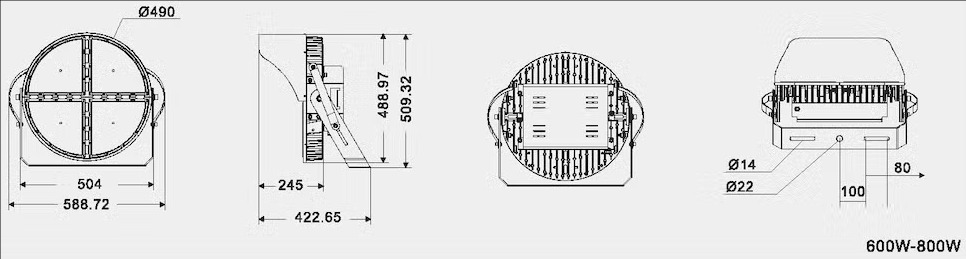

Dimension

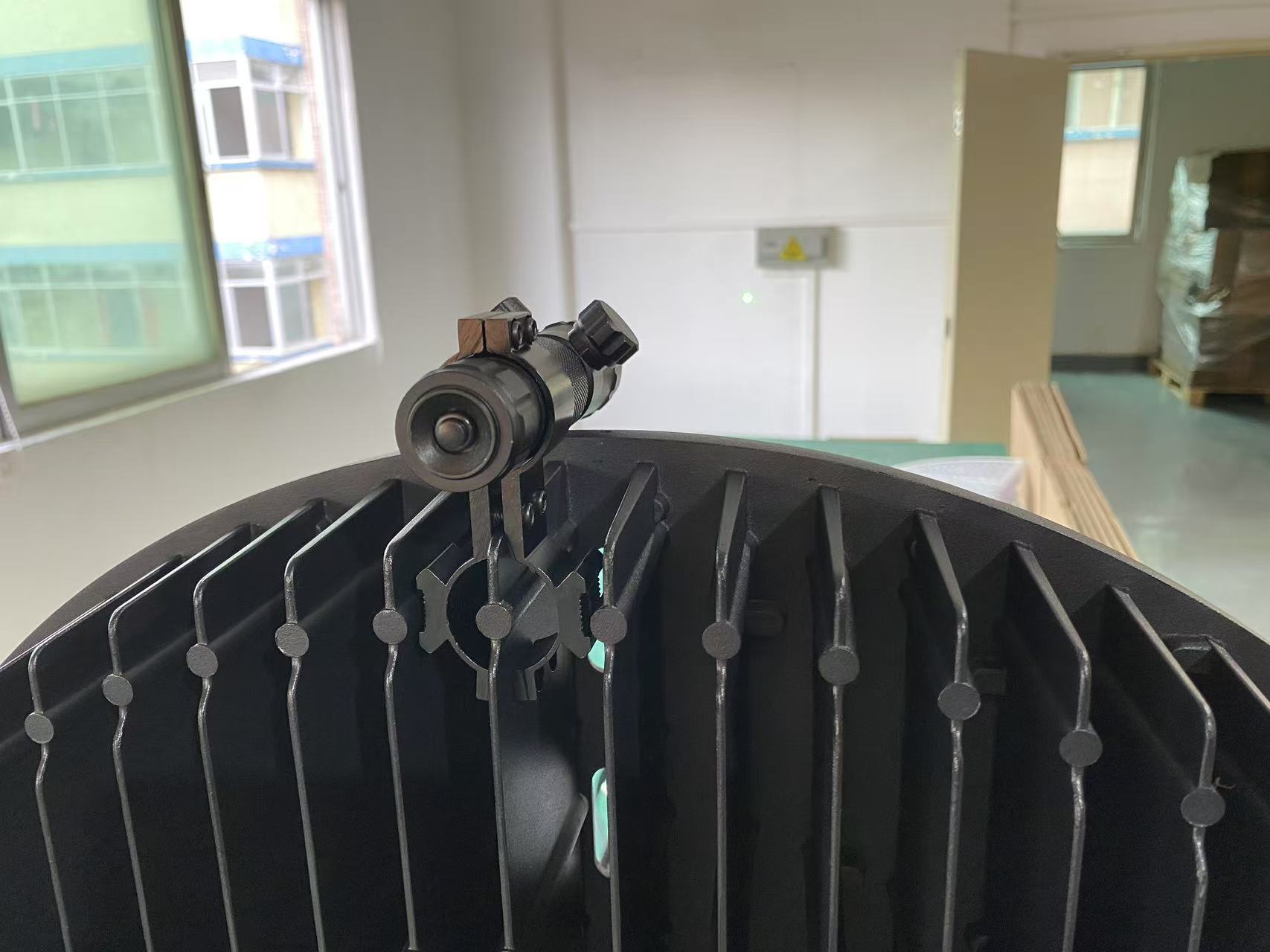

Sports Floodlight Laser Pen pointer calibration
Use the laser to project the point, simulate the direction of the fixture's light projection, and assist in installation of the 600w led high Mast floodlight.

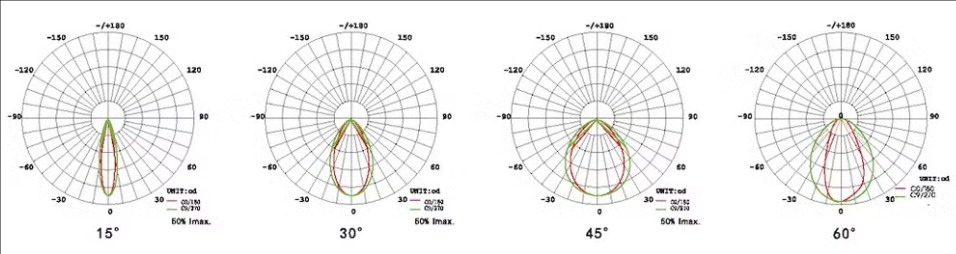

Photometrics
LED round high mast floodlight from 500W-1200W with various beam angle, 150lm/w high efficiency which can match the different projects more.
DIALux lighting design for round high mast floodlight
Applications
LED round floodlight is designed for indoor and outdoor applications, including Billboard lighting, Sport lighting, and Parking Lots. It is an energy-saving replacement for traditional flood light. golf and tennis court,racetrack, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, s.
If you would like to purchase our stadium lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
