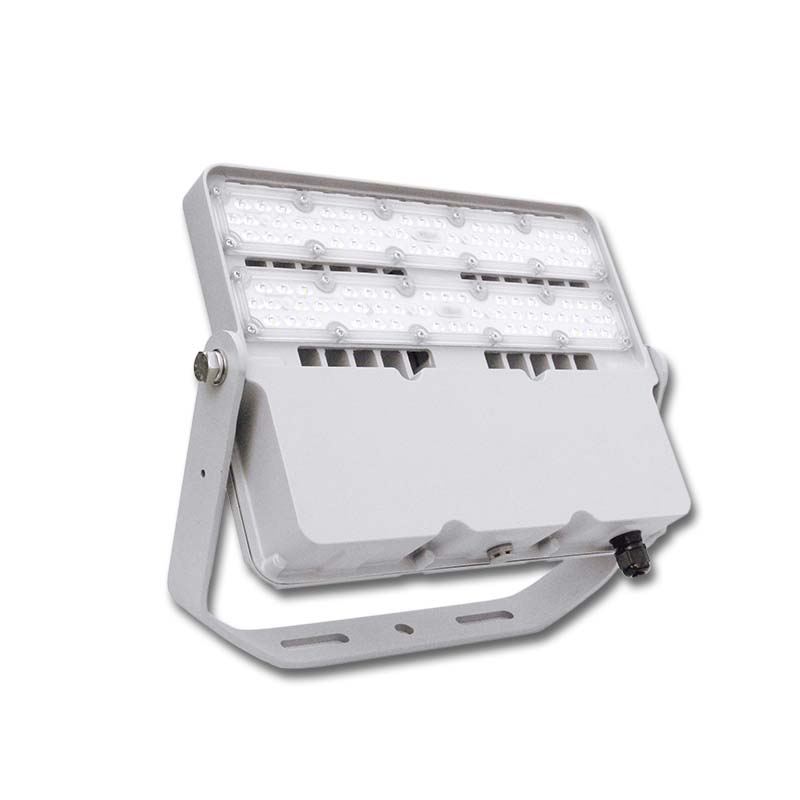

100W module LED flood Light For tennis court Lighting,
Main Features
5 years warranty
Multiple optical Lens choices 30°/ 60°/ 90°/ 80*140° to meet the demand of professional light distribution .
Original Philips SMD3030 which up to 150Lm/W.

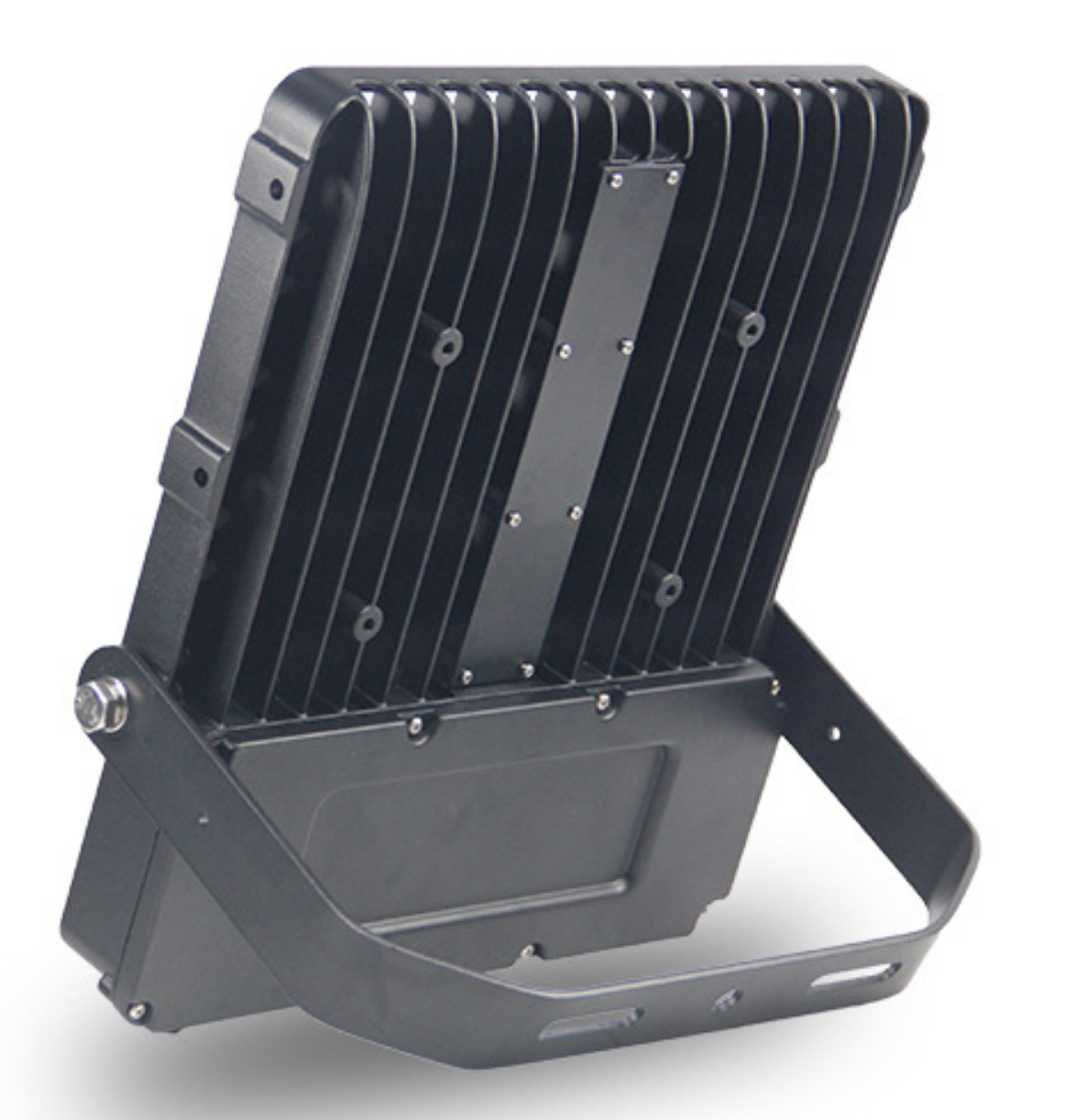

U shape rotatable bracket, the screw hole can adjust the beam angle from 0° to 270°.
IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Tiny package and lighter,lower freight cost,more competitive in the market

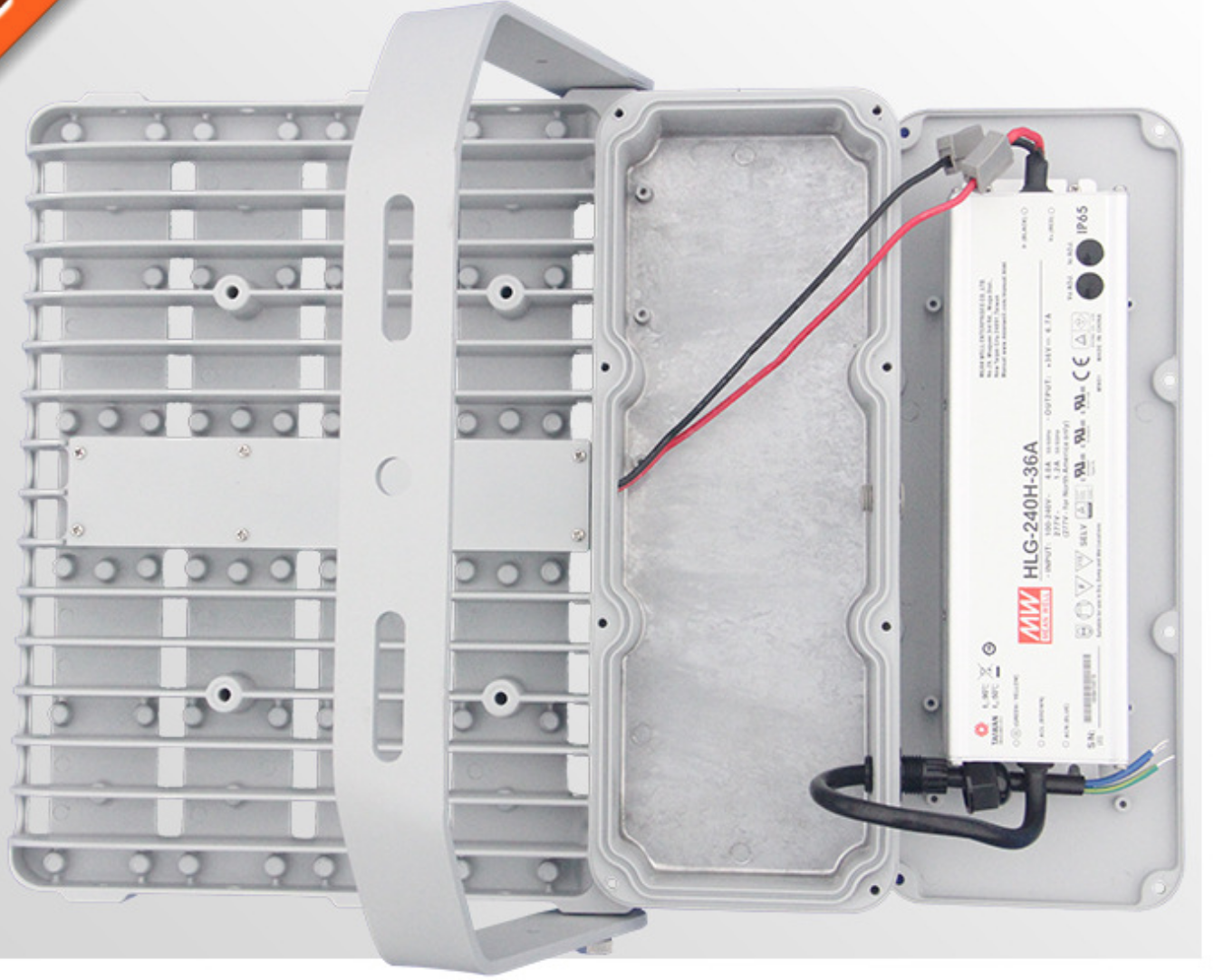

Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 70%.
Specifications - 100W Philips LED Floodlight
| Item NO. | GL-TL-100W G |
| Input Voltage | 100-300VAC , 347-480VAC 50/60Hz |
| Wattage | 100W |
| Luminous Flux | 15,000 Lumen |
| Luminous efficiency | 150LM/W |
| Lihgt Source/ LED QTY | Philips SMD 3030 |
| Driver Power | UL TUV CE RoHS approved driver |

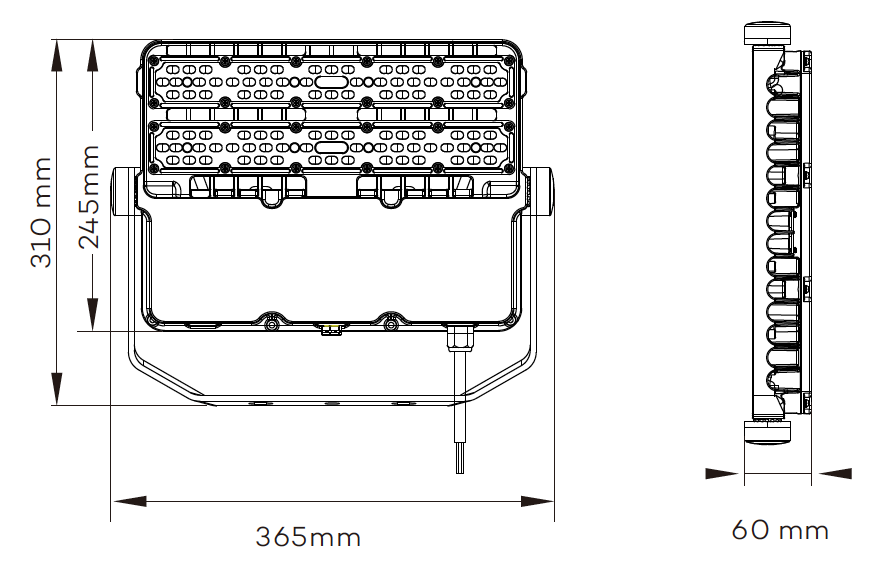

| Dimension | 365mm*310mm*60mm |
| Weight(N.W / G.W) | 4.8KG / 5.5KG |
| CTN Size | 42*37*12cm 1PC/CTN |
| Equivalent | 300W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| Beam Angle | 30°/60°/ 90°/80° *140° |
| Power Factor | >0.95 |
| Dimmable Sensor Options | Non-dimmable / 1-10V Dimmable/DALI |
| Cap Type | Base Options:US,Europe,UK,Australia plug |
| optical lens | Acrylic lens (Optical Grade) |
| Unified Glare Rating | 60° : UGR < 19 90° / 120° : UGR < 25 |
| IP Rating | IP65 |
| CRI | >70 |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 years Warranty |
| Rated Lifespan | 50,000+ hours |
| Certified | CE RoHS certified |

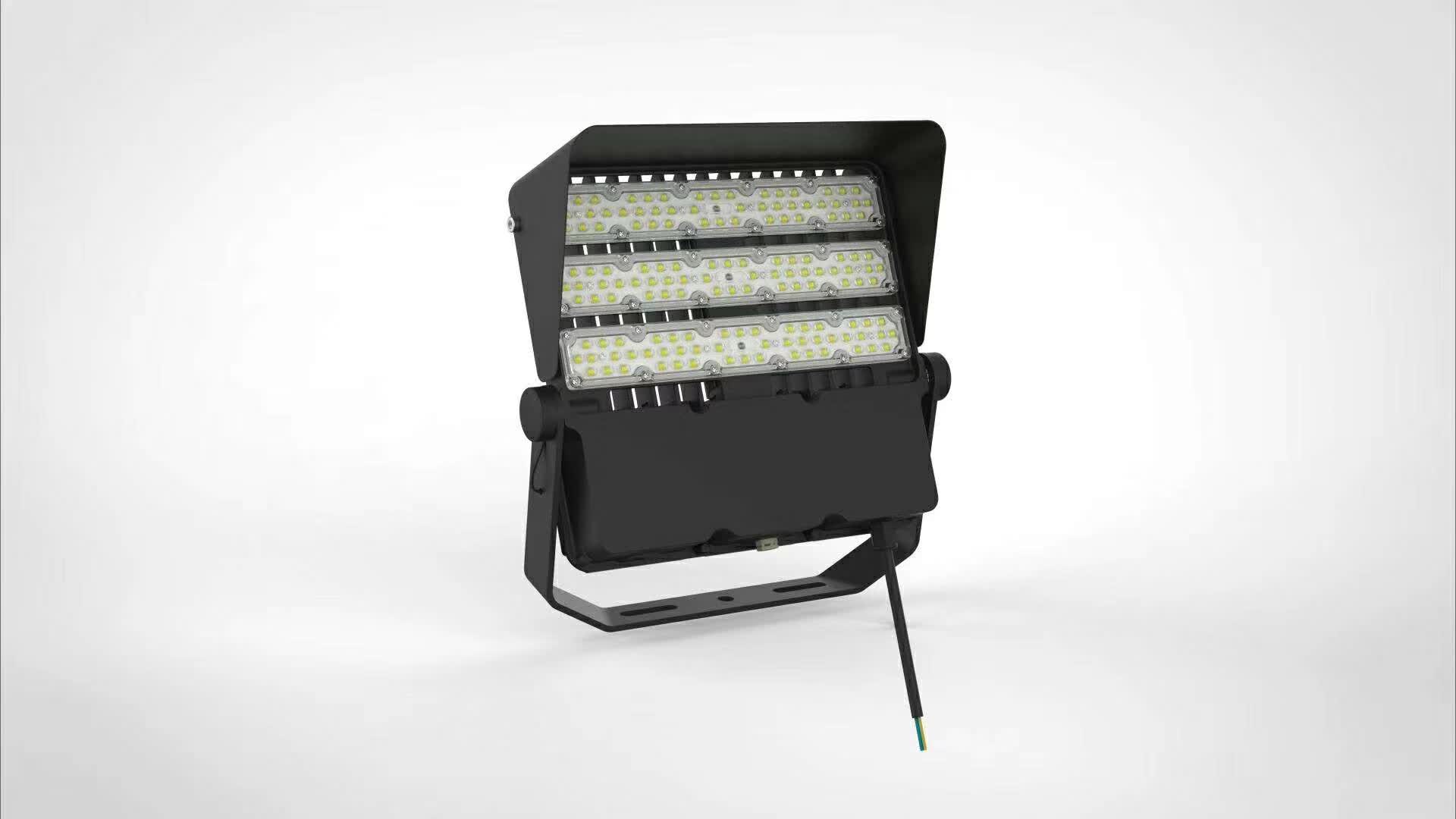

100W LED Flood Light
High Power LED Flood Lights 100W Manufacture
Golon LED flood lighting manufacturers, suppliers, exporters, OEM partners.
Golon LED Lighting LED flood Lights are designed to replace 400W to 5000W Metal Halide and HPS stadium lights. , widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, high-rise buildings, light towers, high mast lighting and etc.
Can also be applied to large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
If you would like to purchase our Floodlights, you can contact us by phone or by mail.
