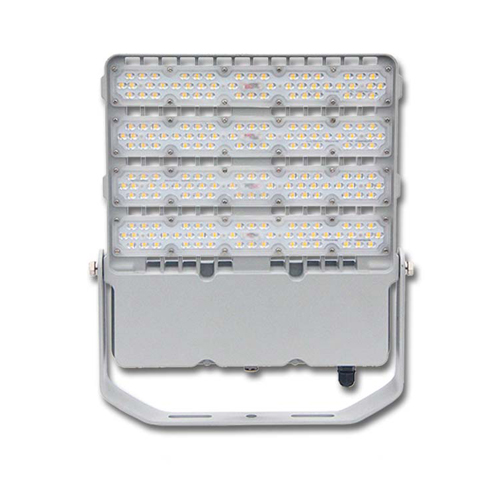

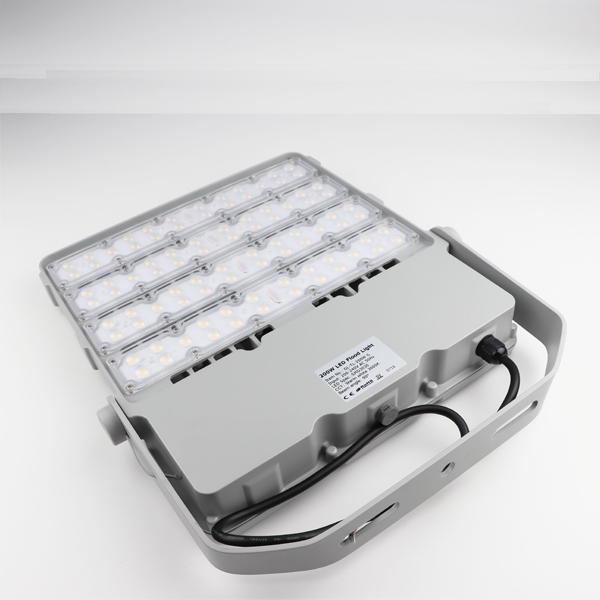

200W LED Flood light Equivalent to 1000W MH/HPS floodlights,Offer Outdoor flood light for tennis court lighting study. IES file
Main Features
5 years warranty
Multiple optical Lens choices 30°/ 60°/ 90°/ 80*140° to meet the demand of professional light distribution .
Original Philips SMD3030 which up to 150Lm/W.

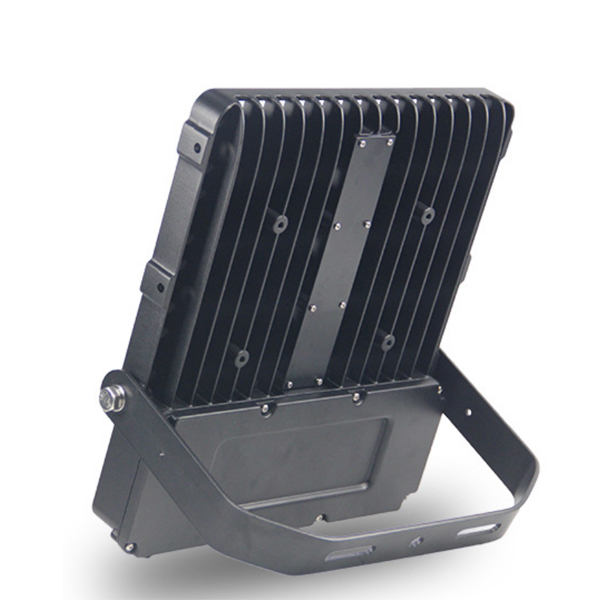

U shape rotatable bracket, the screw hole can adjust the beam angle from 0° to 270°.
IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Tiny package and lighter,lower freight cost,more competitive in the market
Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 70%.
Specifications - 200W LED Flood Light For Tennis Court Lighting
| Item NO. | GL-TL-200W G |
| Input Voltage | 100-300VAC , 347-480VAC 50/60Hz |
| Wattage | 200W |
| Luminous Flux | 30,000 Lumen |
| Luminous efficiency | 150LM/W |
| Lihgt Source/ LED QTY | Philips SMD 3030 |
| Driver Power | UL TUV CE RoHS approved driver |
| Dimension | 365mm*420mm*60mm |
| Weight(N.W / G.W) | 6KG / 6.5KG |
| CTN Size | 40*45*10cm 1PC/CTN |
| Equivalent | 1000W HPS Equivalent |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| Beam Angle | 30°/60°/ 90°/80° *140° |
| Power Factor | >0.95 |
| Dimmable Sensor Options | Non-dimmable / 1-10V Dimmable/DALI |
| Cap Type | Base Options:US,Europe,UK,Australia plug |
| optical lens | Acrylic lens (Optical Grade) |
| Unified Glare Rating | 60° : UGR < 19 90° / 120° : UGR < 25 |
| IP Rating | IP65 |
| CRI | >80 |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 year Warranty |
| Rated Lifespan | 50,000+ hours |
| Certified | CE RoHS certified |

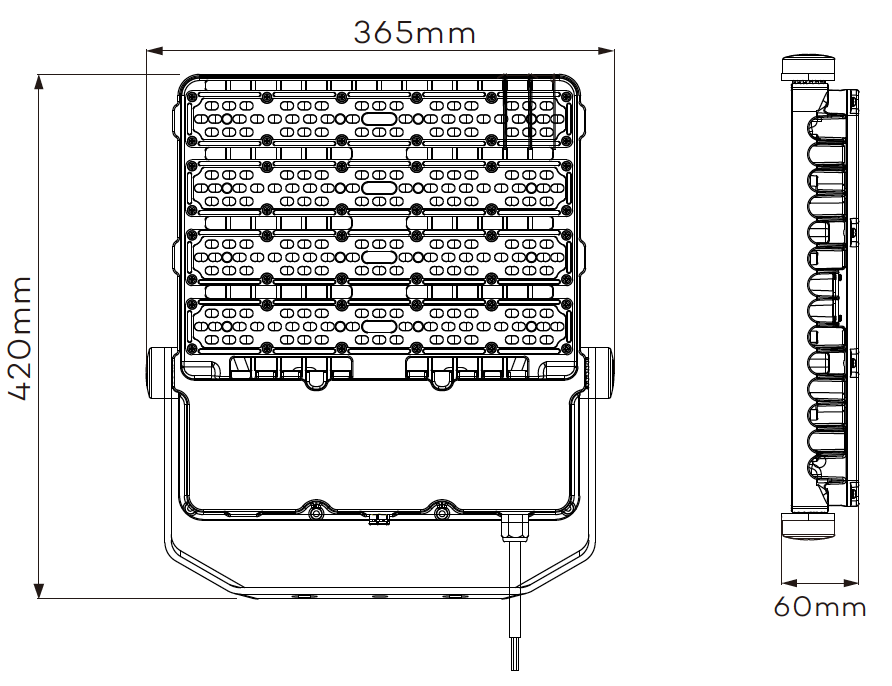

Dimensions 200W LED Flood Light
High Power LED Flood Lights 200W Manufacture
Golon LED football stadium lighting manufacturers, suppliers, exporters, OEM partners.
Golon LED Lighting LED Stadium Lights are designed to replace 400W to 5000W Metal Halide and HPS stadium lights. , widely used in stadiums, football field, basketball court, golf and tennis court, racetrack, badminton, high-rise buildings, light towers, high mast lighting and etc.
Can also be applied to large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
If you would like to purchase our Floodlights, you can contact us by phone or by mail.
