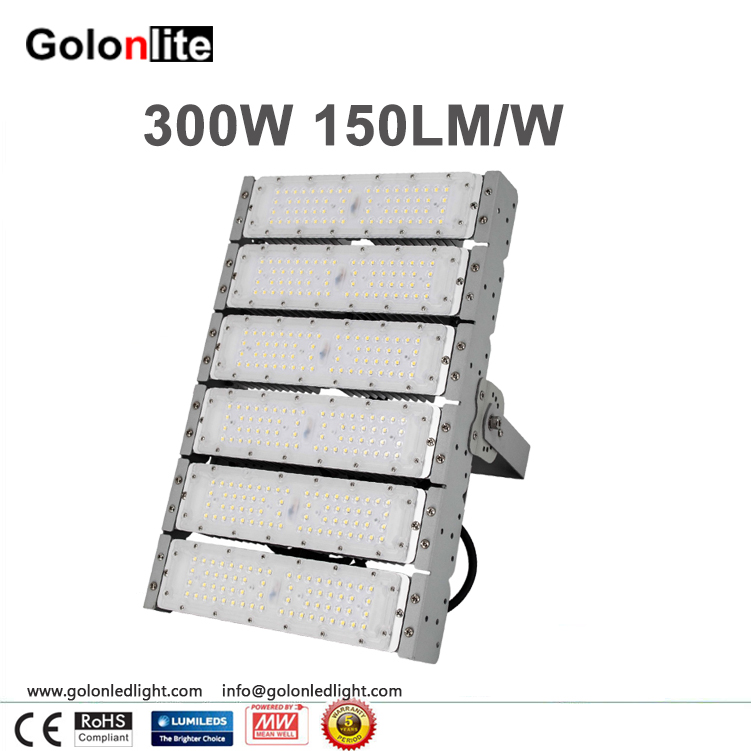

Golon 300W led court tennis lights are engineered specifically for lighting outdoor and indoor tennis court that Support Flexible Assembly.
The modular tennis court light supports flexible assembly of different wattage, from 50W to 1000W. As the main light for large-area illumination, are widely used in many scenarios, such as factories, billboards, highways, railways, tunnels, bridges, culverts, squares, stadiums, buildings, etc.
Modular system, Maintenance free of tools,Light and resistant,Easy Installation
Main Features
Modular design.
Stock single module 50W, easy to assemble 100W-1000W
Various angles are available (60°, 90°,70°*145°).
High efficiency up to 150lm/w.
Philips SMD3030, 5 years warranty.
Provide multiple installation holes for options, application scenarios are more diverse
U shape rotatable bracket, the screw hole can adjust the beam angle from 0° to 180°.
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion.
The whole fittings comes with excellent heat dissipation, low temperature and longer span life.
Tiny package and lighter,lower freight cost,more competitive in the market.
Specifications - Modular Design 300W led tennis court lights
Item NO. | GL-TL-300W |
Input Voltage | 100-277VAC 50/60Hz |
Wattage | 300W |
Luminous Flux | 45,000 Lumen |
Luminous efficiency | 150LM/W |
Lihgt Source | Philips SMD 3030 |
Dimension | 316mm*215mm*476mm |
Weight | 7.2KG |
Equivalent | 800W HPS Equivalent |
CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
Beam Angle | 60° / 90°/ 70° X145° |
Power Factor | >0.95 |
Color Rendering Index | Ra70 (Ra80,Ra90 optional) |
optical lens | PC lens (Optical Grade) |
IP&IK Rating | IP66/IK08 |
Certified | CE |
Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
Warranty | 5 years Warranty |
Rated Lifespan | 50,000+ hours |
Dimensions 300W Modular LED tennis court Light
Modular Spotlight 300W LED tennis court Lighting
LED tennis court lights are high efficiency specialized commercial grade area tennis court light used in applications where day light is required including sports stadiums, factories, loading docks, building/bridge lighting, etc. Available in 50W, 100W,150W, 200W, 240W, 300W, 400W,500W, 600W, 800W or 1000W modules, and multiple beam angles including both symmetric 60°, 90° and 70° x 145° there is enough flexibility to suite any application and tower height whilst achieving the most optimal and uniform lighting distribution
Starting with the 50-watt single unit and going all the way up to the 1000-watt twelve module unit. The Modular range is fitted with the 64pcs leds enabling this to deliver a massive150 Lumens Per Watt. As with all our high-quality powered LED lights, this range comes with the Meanwell HLG/ELG driver for a solid 5-year warranty. The casing comes in a clean silver or black finish and can also come with a full dimming option if required. This Modular Flood Light is now becoming one of the first options for clients when it comes to Sports Flood Lighting.
If you need more information about this product and the latest quotation, please feel free to contact us.
