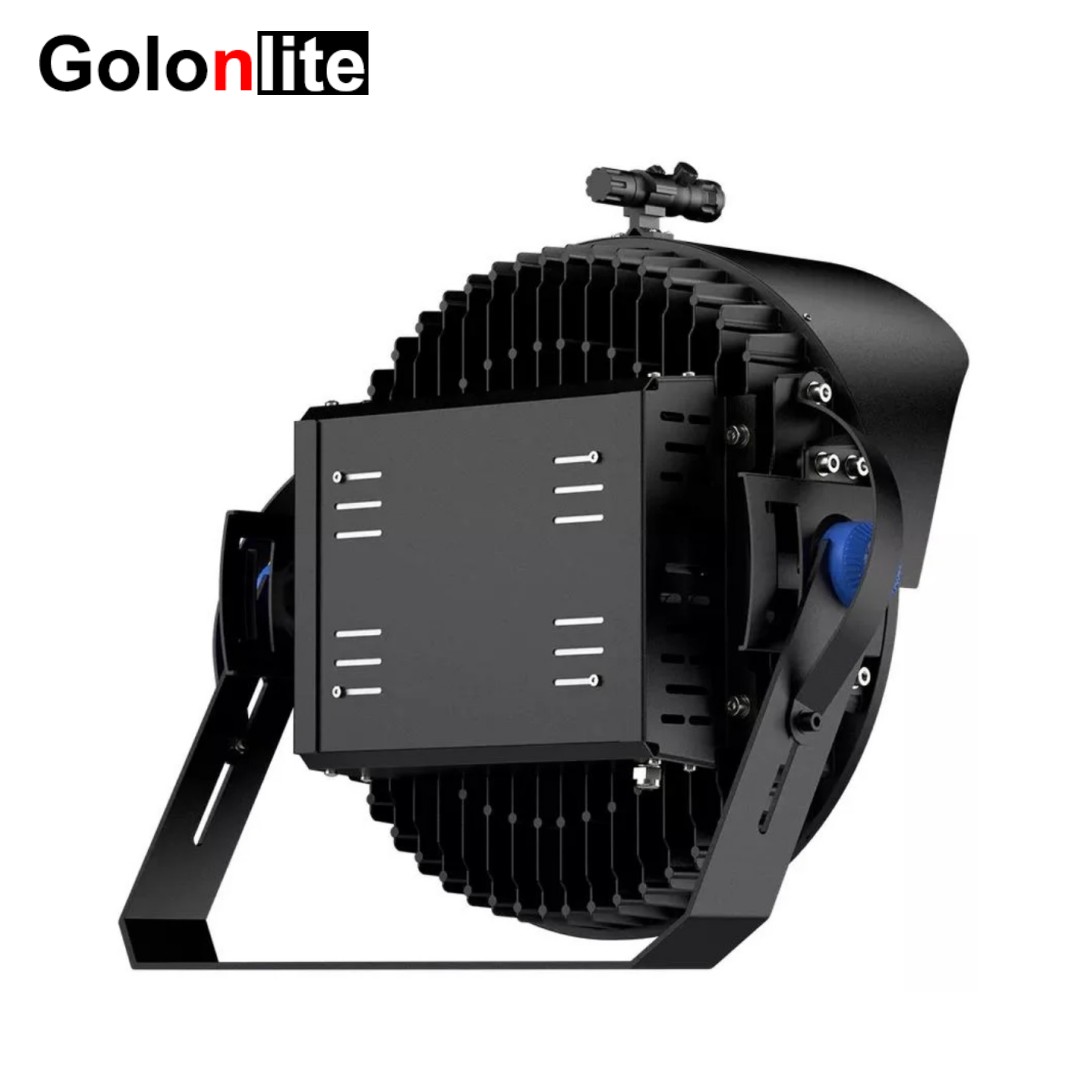

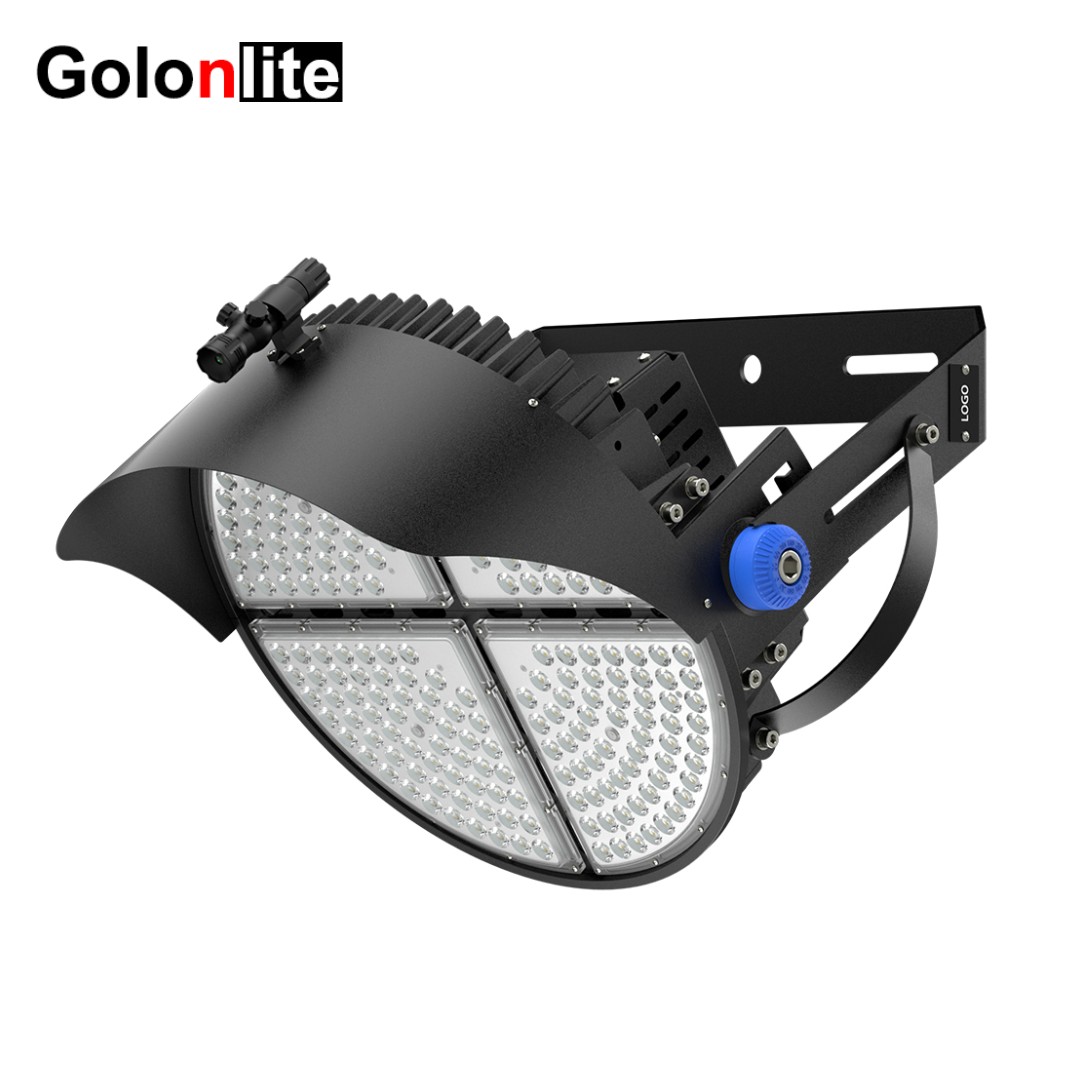

Golon LED Light 1000W LED High Mast Floodlight For Stadium Lighting adopt to Die-casting Aluminum allows superior thermal management to ensure long lifetime,Narrow beam angle 10° specially design for higher installations above 98ft, and medium beam angle 60° is design for normal installation height.
Main Features
High luminaire efficiency up to 150lm/w.
Die-casting Aluminum allows superior thermal management to ensure long lifetime.
Original Philips SMD5050.
DIM 1-10V (dim-mable from 10% to 100%) or DALI.
IP66 and IK08 protection rate.
Specifications
| Product Type | LED High Mast Floodlight |
| Model No. | GL-FR-1000W |
| Power | 1000W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 150,000LM(150lm/w) |
| Light Source | Lumileds SMD5050 |
| LED Quantigy | 480pcs total |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 10°/25°/60° |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | Meanwell / Sosen |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 645*380 |
| Weight | 31KG |
| CTN Size | 880×700×290mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

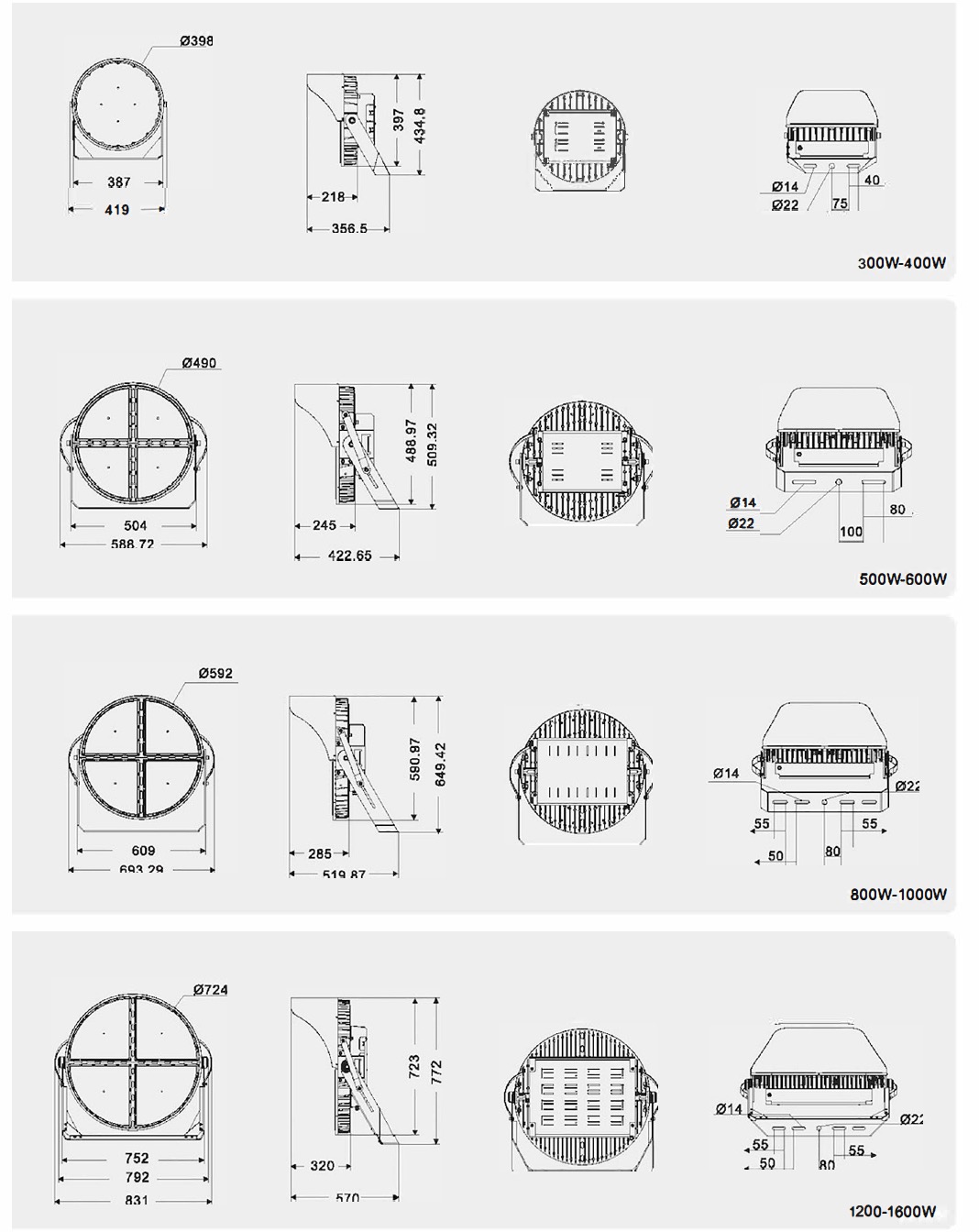

Dimension

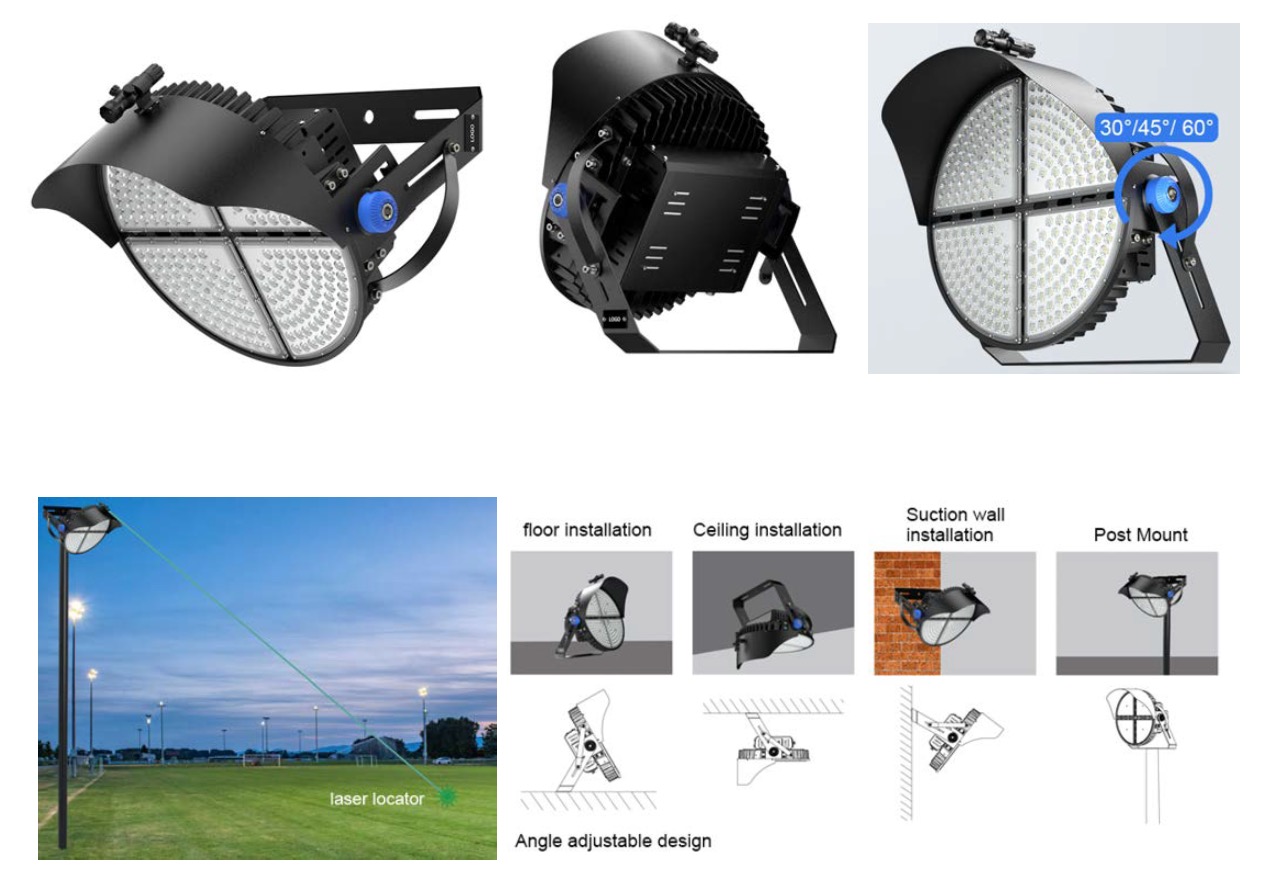

Sports Floodlight Laser Pen pointer calibration
Use the laser to project the point, simulate the direction of the fixture's light projection, and assist in installation of the1200w led high Mast floodlight.

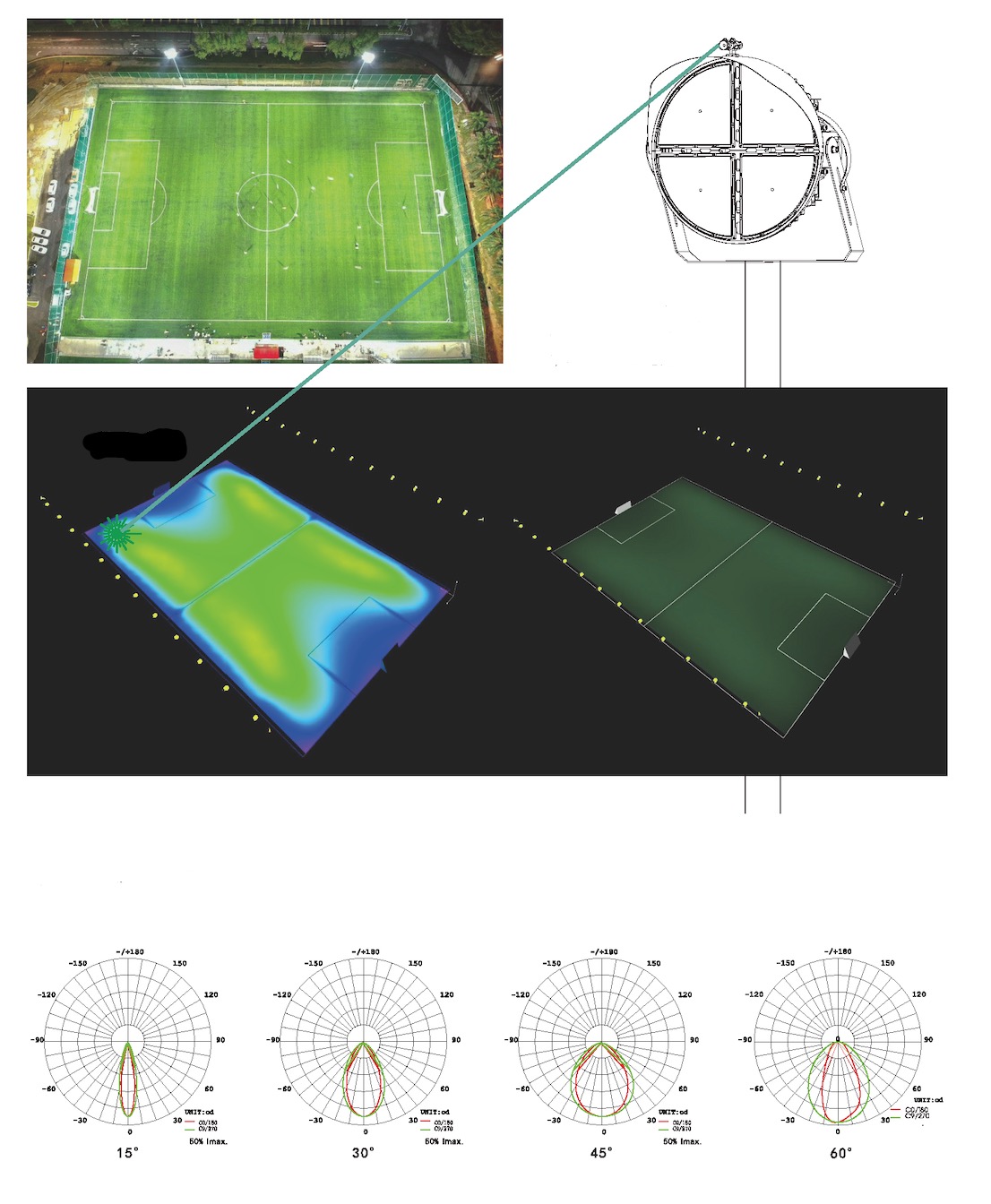

Photometrics
LED round high mast floodlight from 500W-1200W with various beam angle, 150lm/w high efficiency which can match the different projects more.
DIALux lighting design for round high mast floodlight
Applications
LED round floodlight is designed for indoor and outdoor applications, including Billboard lighting, Sport lighting, and Parking Lots. It is an energy-saving replacement for traditional flood light. golf and tennis court,racetrack, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, s.
If you would like to purchase our stadium lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
