500W LED round sports light high power floodlight 400W, IP66 & IK08, 75,000 Lumens, Full series available by 400W to 1600W, ideal to retrofit the 1000W to 3000W traditional sports lights,suitable for use in sports field, airports, outdoor logistic center, ports, etc.
Main Features
High luminaire efficiency up to 150lm/w.
Die-casting Aluminum allows superior thermal management to ensure long lifetime.
With illumination equivalent to 1000 watt metal halide fixtures.
DIM 1-10V (dim-mable from 10% to 100%) or DALI , DMX.
IP66 and IK08 protection rate.
Specifications
| Product Type | LED Sports Light High Power Floodlight |
| Model No. | GL-FR-500W |
| Power | 500W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 75,000LM(150lm/w) |
| Light Source | SMD5050 |
| LED Quantigy | 240pcs total |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 15°/35°/60° |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | Meanwell / Sosen |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 490*330 |
| Weight | 17.5KG |
| CTN Size | 710×530×270mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

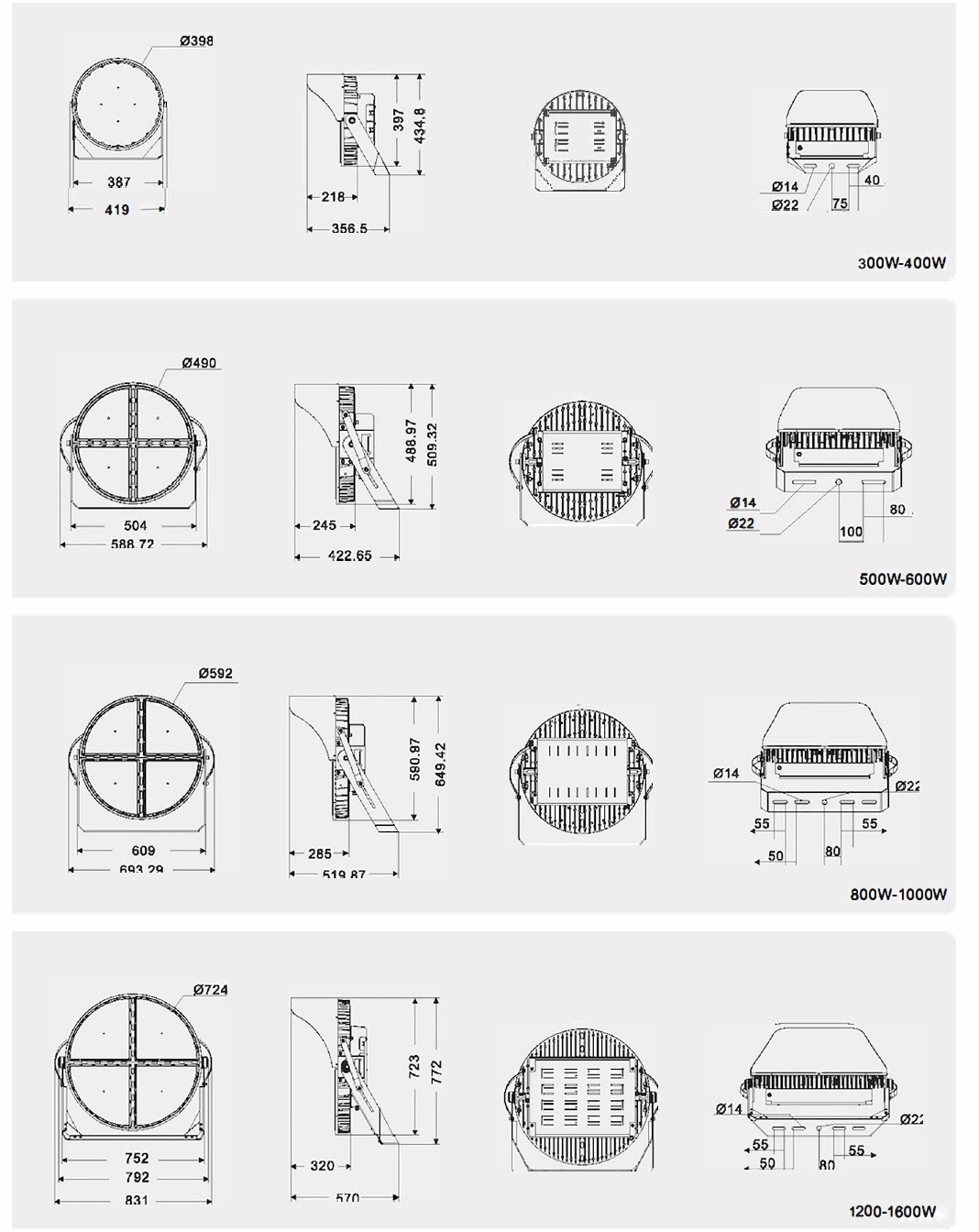

Dimension
Sports Floodlight Laser Pen pointer calibration
Use the laser to project the point, simulate the direction of the fixture's light projection, and assist in installation of the 500w led high Mast floodlight 400w

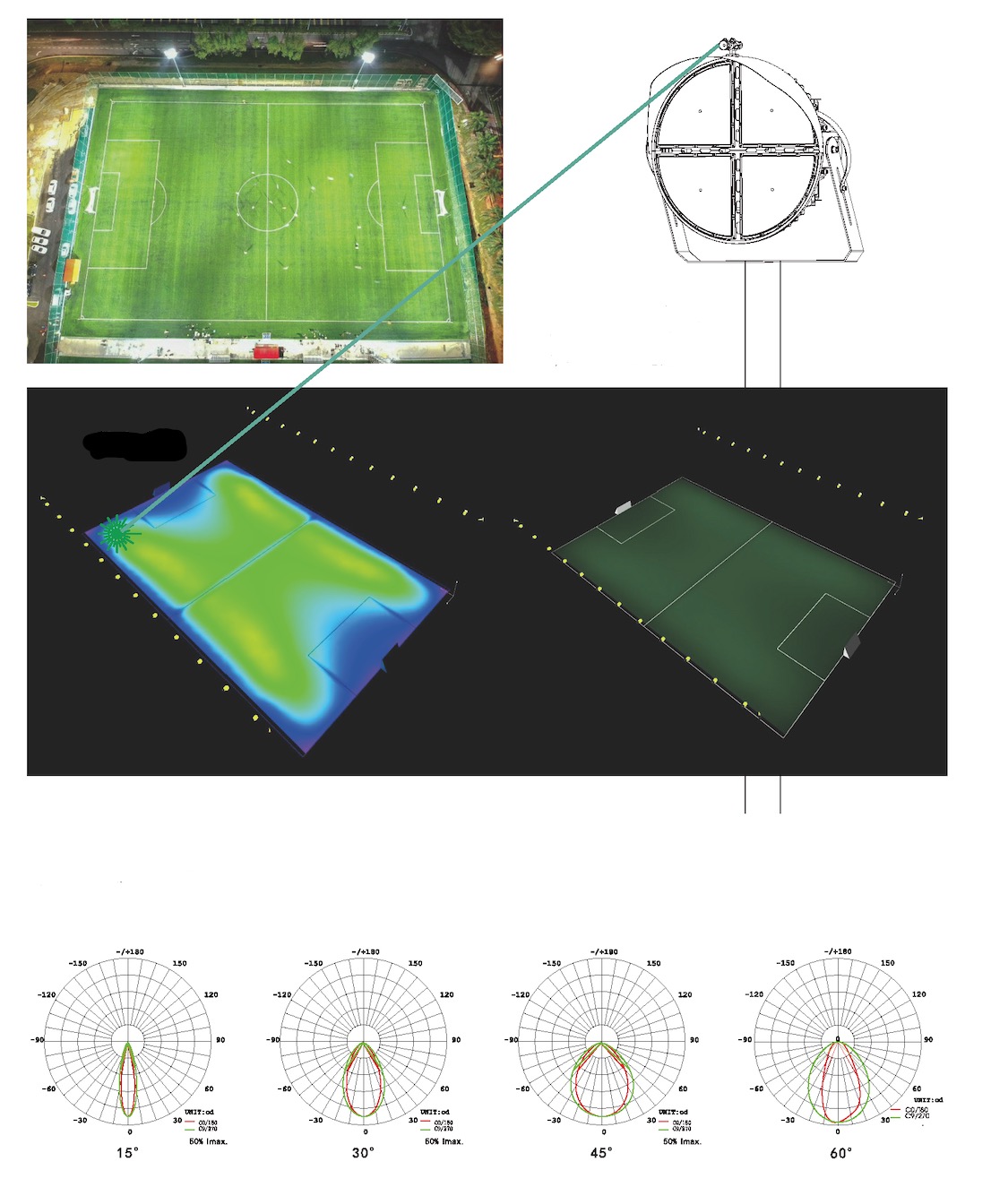

Photometrics
LED round high mast floodlight from 400W-1600W with various beam angle, 150lm/w high efficiency which can match the different projects more.
DIALux lighting design for round sports Light high power floodlight
Applications
LED round floodlight is designed for indoor and outdoor applications, including Billboard lighting, Sport lighting, and Parking Lots. It is an energy-saving replacement for traditional flood light. golf and tennis court,racetrack, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building,
If you would like to purchase our stadium lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
