Golon LED Light 1200W led round high mast flood light adopt to Die-casting Aluminum allows superior thermal management to ensure long lifetime,multiple beam angle for option ,including narrow 10deg to get directional illumination to far distance. Superior design with IP66 waterproof, as ideal solution for indoor high ceiling mounting, sports field lighting and outdoor high mast applications.
Main Features
High luminaire efficiency up to 150lm/w.
Die-casting Aluminum allows superior thermal management to ensure long lifetime.
Original Philips SMD5050.
DIM 1-10V (dim-mable from 10% to 100%) or DALI.
IP66 and IK08 protection rate.
Specifications
| Product Type | LED Round High Mast Flood Light |
| Model No. | GL-FR-1200W |
| Power | 1200W |
| Input Voltage | AC 100-277V 50/60Hz |
| Lumens | 180,000LM(150lm/w) |
| Light Source | Lumileds SMD5050 |
| LED Quantigy | 480pcs total |
| CRI | >70RA (Ra80 optional) |
| KELVIN (CCT) | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle | 10°/25°/60° |
| DIMMABLE | Non-dimmable / Dimmable |
| Driver Power | Meanwell / Sosen |
| Power Factor | >0.95 |
| Protection level | IP66 IK08 |
| Product Dimension | 645*380 |
| Weight | 33KG |
| CTN Size | 880×700×290mm (1PC/CTN) |
| Life Span | >50,000 hours |
| Warranty | 5 Years Warranty |
| Certified | CE ROHS |

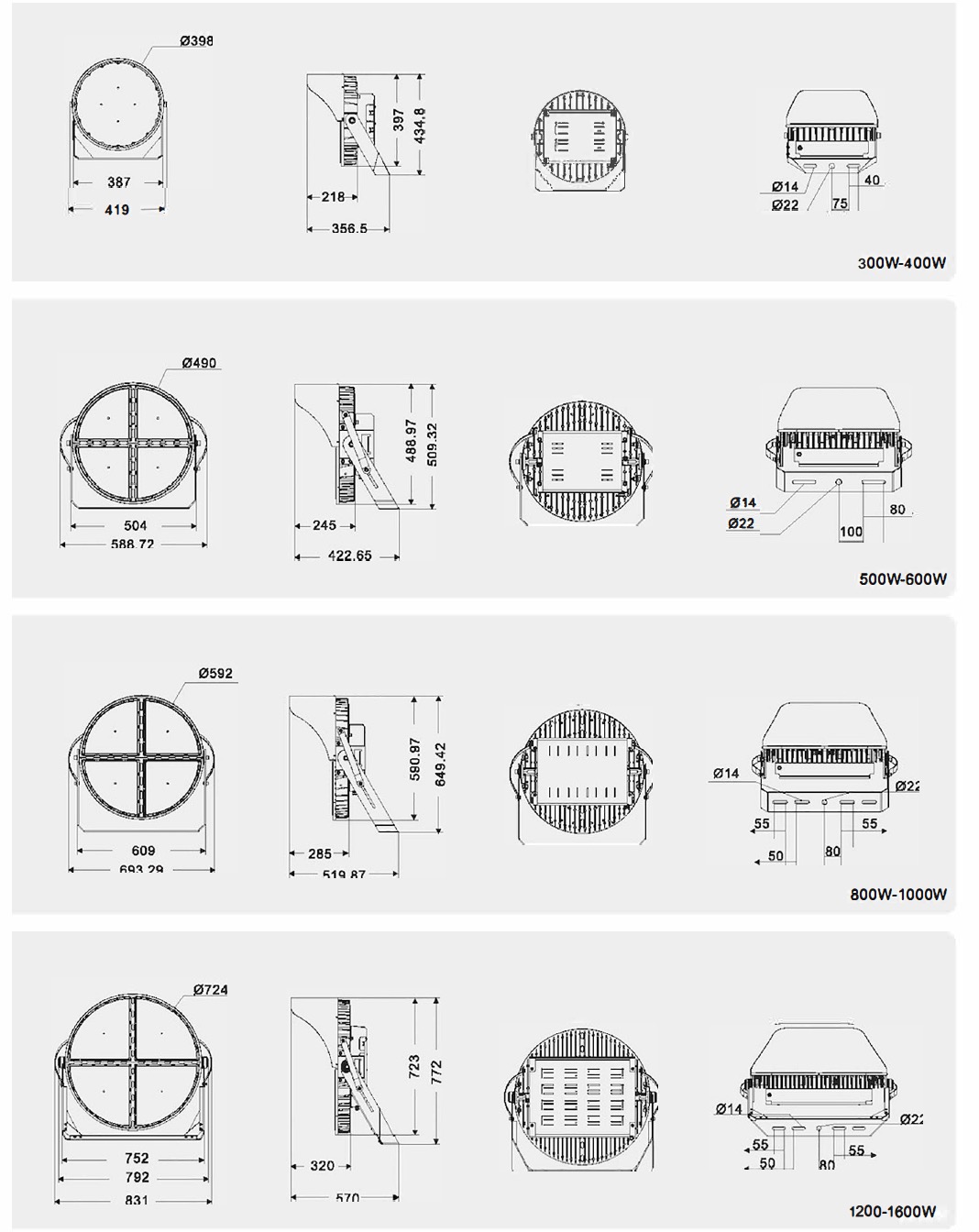

Dimension
Sports Floodlight Laser Pen pointer calibration
Use the laser to project the point, simulate the direction of the fixture's light projection, and assist in installation of the1200w round floodlight.

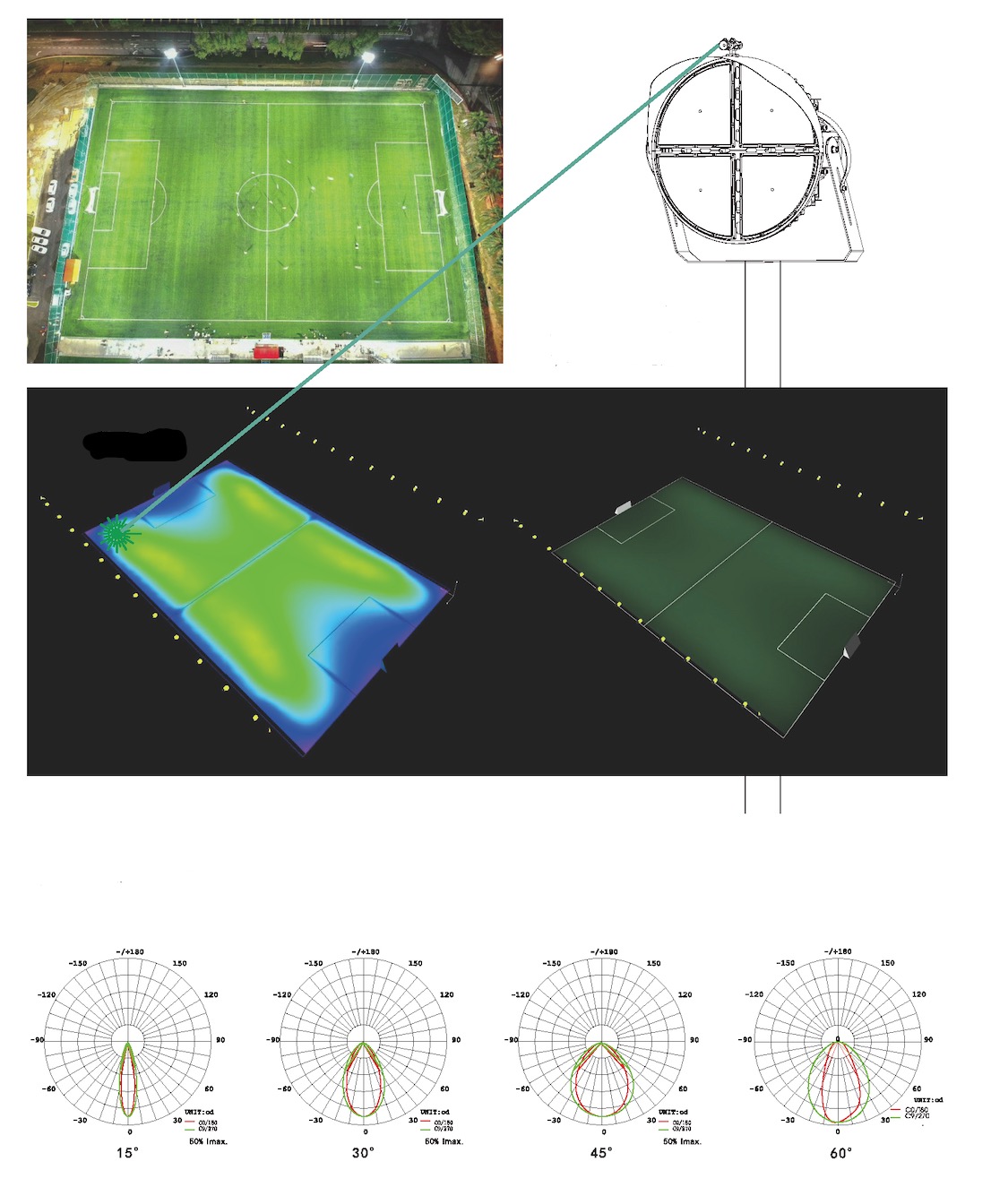

Photometrics
LED round Stadium high mast light from 600W-1200W with various beam angle, 150lm/w high efficiency which can match the different projects more.
DIALux lighting design for round high mast flood light
Applications
LED round high mast flood light is designed for indoor and outdoor applications, including Billboard lighting, Sport lighting, and Parking Lots. It is an energy-saving replacement for traditional flood light. golf and tennis court,racetrack, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, s.
If you would like to purchase our stadium lights, you can contact us by phone or by mail for more detailed information and the latest quotation.
